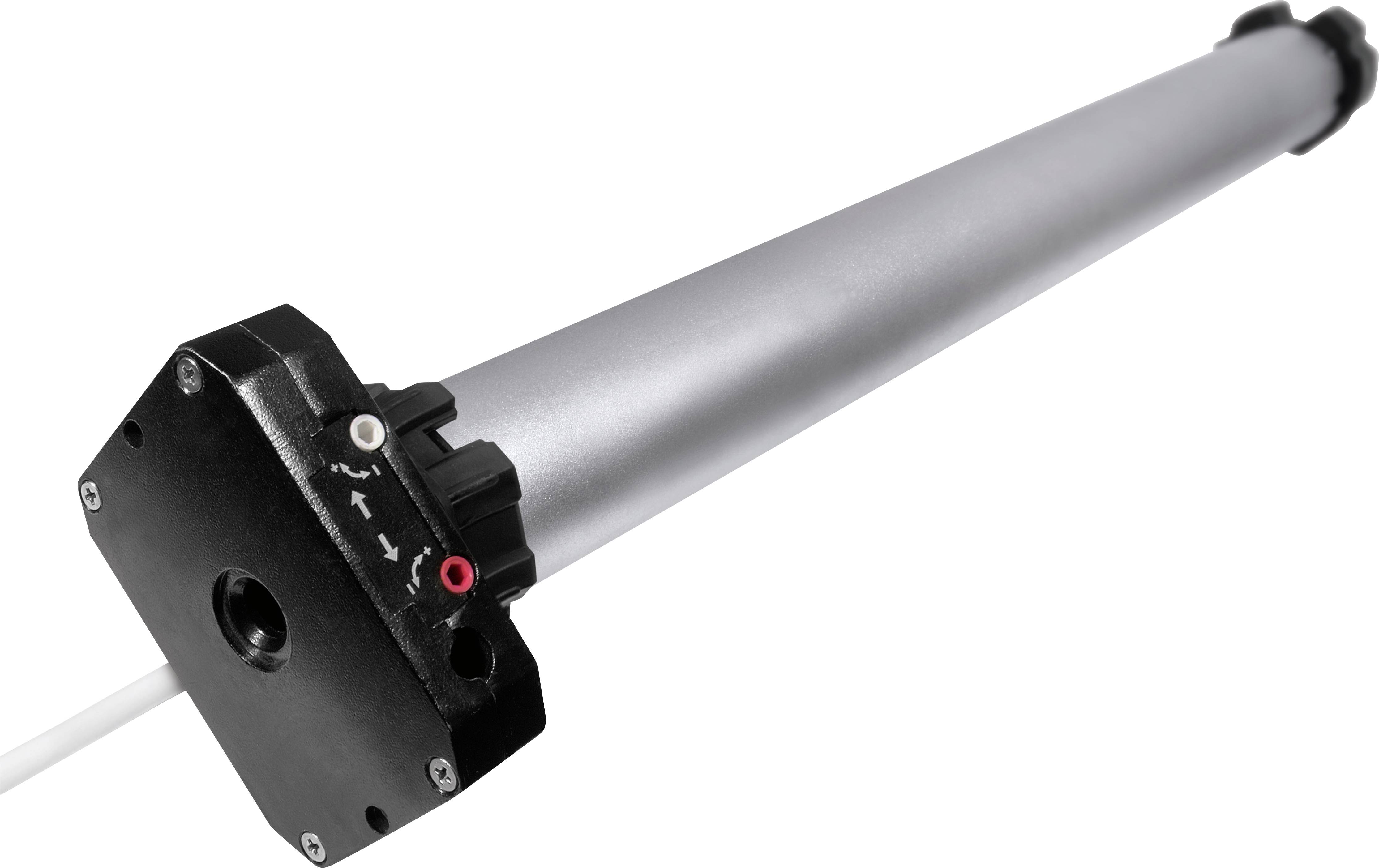

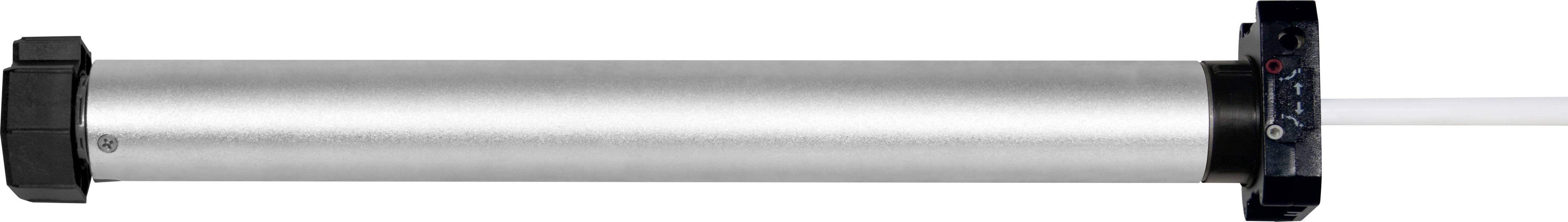

Rademacher RTBM 30/16HKZ 21603098 Tubular motor 60 mm 191 W 30 Nm
EAN:
Part number:
Item no:
Highlights & Details
Tubular motor Rademacher RTBM 30/16HKZ 21603098 30 Nm
- Version with crank function
- For shutters in almost all sizes
- Adapted for: Octagonal steel shaft SW60
- Mechanical end point adjustment
Technical specifications
- Short-term operation: 4 min.
- Protection class: IP44
- Pipe-Ø (diameter) 45 mm
- Product type
Tubular motor
- Suitable for shutter axle Ø
60 mm
- Motor power
191 W
- Rotational speed
16 U/min
- Length
624 mm
- Limit switched
mechanical
- Operating voltage
230 V
- Type
With crank function
- Hub
Not required
- Torque
30 Nm
- Lead length
2.50 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451070 Rademacher RTBM 30/16HKZ 21603098 Tubular motor 60 mm 191 W 30 Nm
Warranty Terms
Warranty Terms 2451070 Rademacher RTBM 30/16HKZ 21603098 Tubular motor 60 mm 191 W 30 Nm
Description
Roller shutter motor with mechanical end point adjustment.
The RolloTube base is the base roller shutter motor from Rademacher and the only motor with mechanical end point adjustment. This means that the end points are set mechanically via the adjusting screws on the motor head.
In this version of the ROLLOTube base with hand crank, operation by hand crank is supported in case of power failure. (Crank handle and crank eye available as accessories (Product No.: 9600 00 03 and 9600 00 02/9600 00 34).

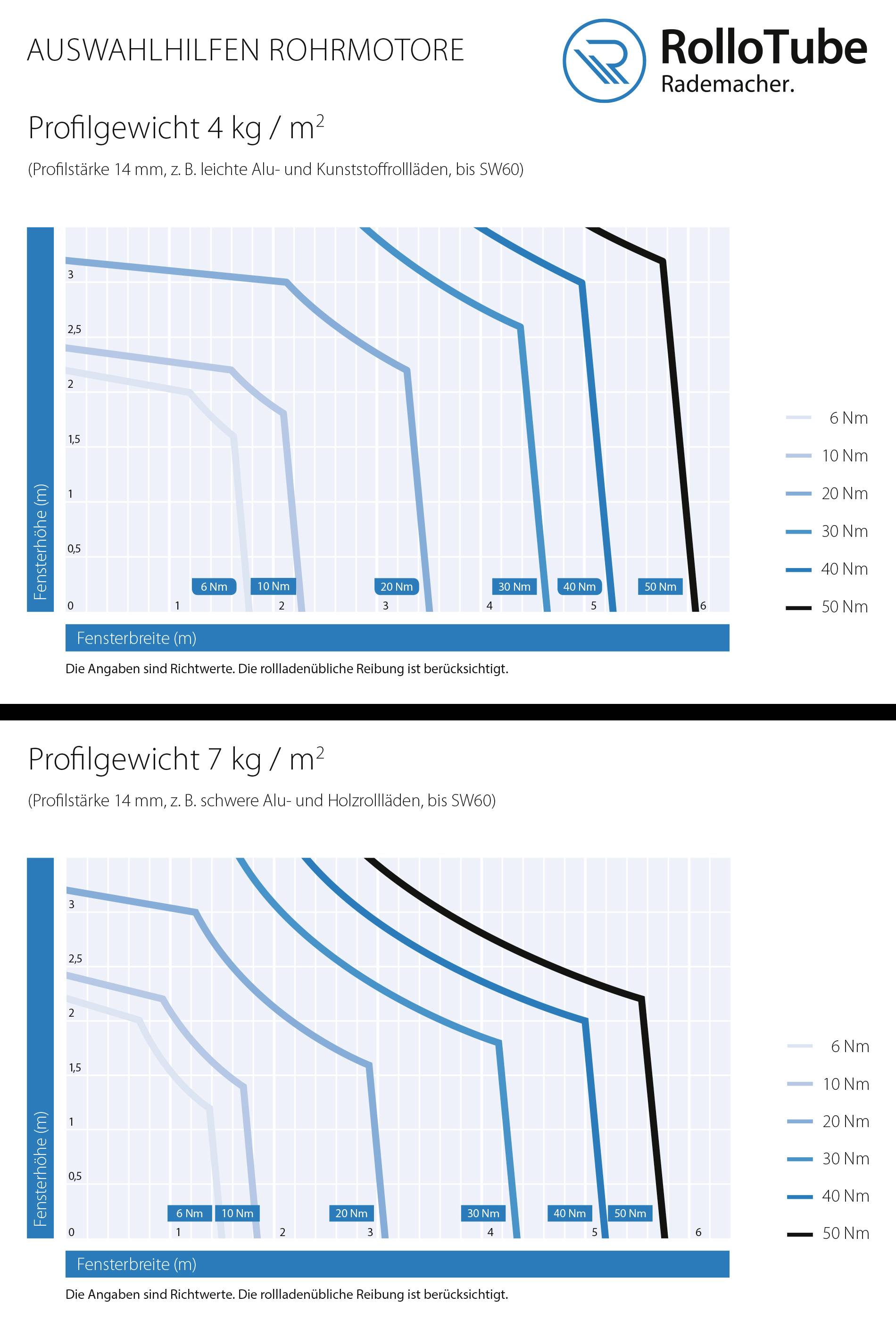

The tubular motor RolloTube base is available with a crank handle in 2 sizes and different tensile forces.
This text is machine translated.
The RolloTube base is the base roller shutter motor from Rademacher and the only motor with mechanical end point adjustment. This means that the end points are set mechanically via the adjusting screws on the motor head.
In this version of the ROLLOTube base with hand crank, operation by hand crank is supported in case of power failure. (Crank handle and crank eye available as accessories (Product No.: 9600 00 03 and 9600 00 02/9600 00 34).
The tubular motor RolloTube base is available with a crank handle in 2 sizes and different tensile forces.
This text is machine translated.
Features
- Hand crank version: This engine supports manual crank operation (in case of power failure)
- Simple operation of the roller shutter motor via Troll timer, radio actuators or commercially available shutter switch
- Including accessories: HK 9430 10 02 adapter, 9440 10 01 bearing.
Hints
Hand crank and crank eye not included.
