Radxa AP002-EU Mains PSU (fixed voltage) Max. output current 5000 mA 1 x
EAN:
Part number:
Item no:
Highlights & Details

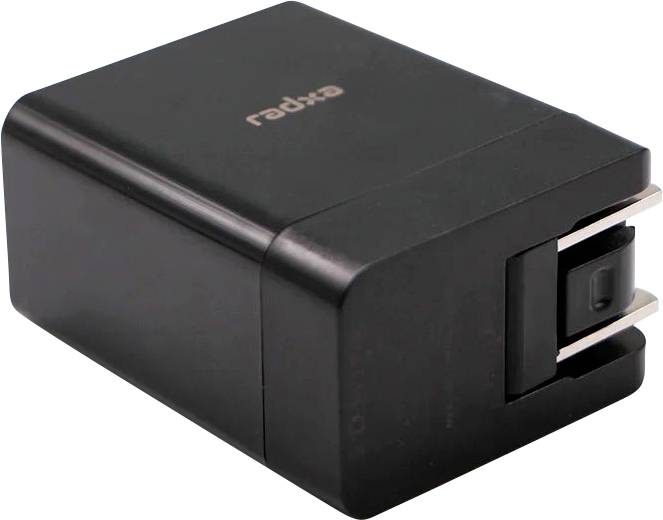

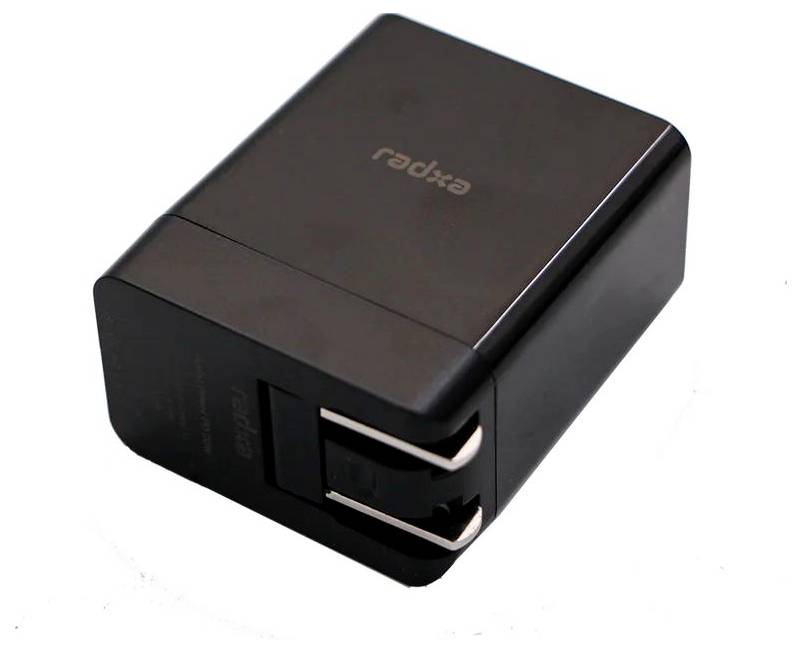

Radxa bzw. Power supply unit AP002 / Radxa Power PD 30W EU (Raspberry 5 compatible)
- INPUT AC100-240V50/60HZ 1A
- OUTPUT 5V/5A, 9V/2A, 12/2.5A
- Protective function
- Overvoltage protection
- Short-circuit protection
- Over current protection
- Environment requirement
Technical specifications
- Product type
Mains PSU (fixed voltage)
- No. of outputs
1 x
- Max. output current
5000 mA
- Max. output current per channel
5000 mA
- Output current (max.) - rounded
5 A
- Used at
Mains socket
- Output voltage
5 V DC
- Factory colour
Black
- Type
AP002-EU
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3331293 Radxa AP002-EU Mains PSU (fixed voltage) Max. output current 5000 mA 1 x
Description
The Radxa Power PD 30W is an adapter specially developed for the SBC products from Radxa. It can supply up to 5A at 5V to meet the power requirements of Radxa SBCS, even if multiple peripherals are connected. For SBCS that support the PD/QC protocol, it can provide a total of 30W at 12V/2.5A. It is compatible with all Radxa SBCS.
USB-C cable, adapter to EU, power supply 30W
This text is machine translated.
USB-C cable, adapter to EU, power supply 30W
This text is machine translated.
Features
- Temperature
- Operating environment: 0° - +40°
- Storage Ambient conditions: -25° - +55°
- Air humidity:
- Operating: 25% - 90% relative humidity (non-condensing)
- Storage: 10% - 90% relative humidity (non-condensing)
