Radxa RA027G3 Development board Compatible with (development kits): Rock Pi, Raspberry Pi®
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

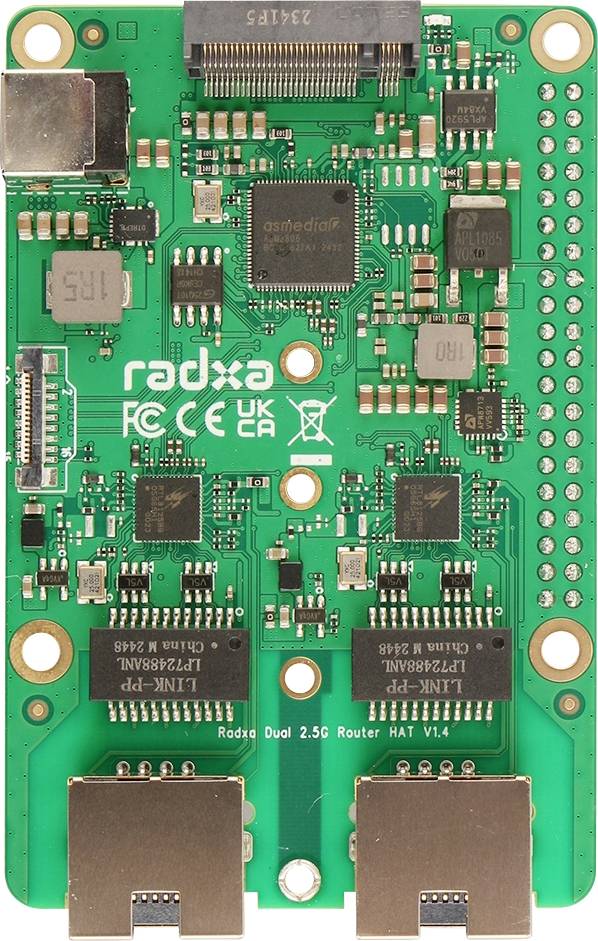

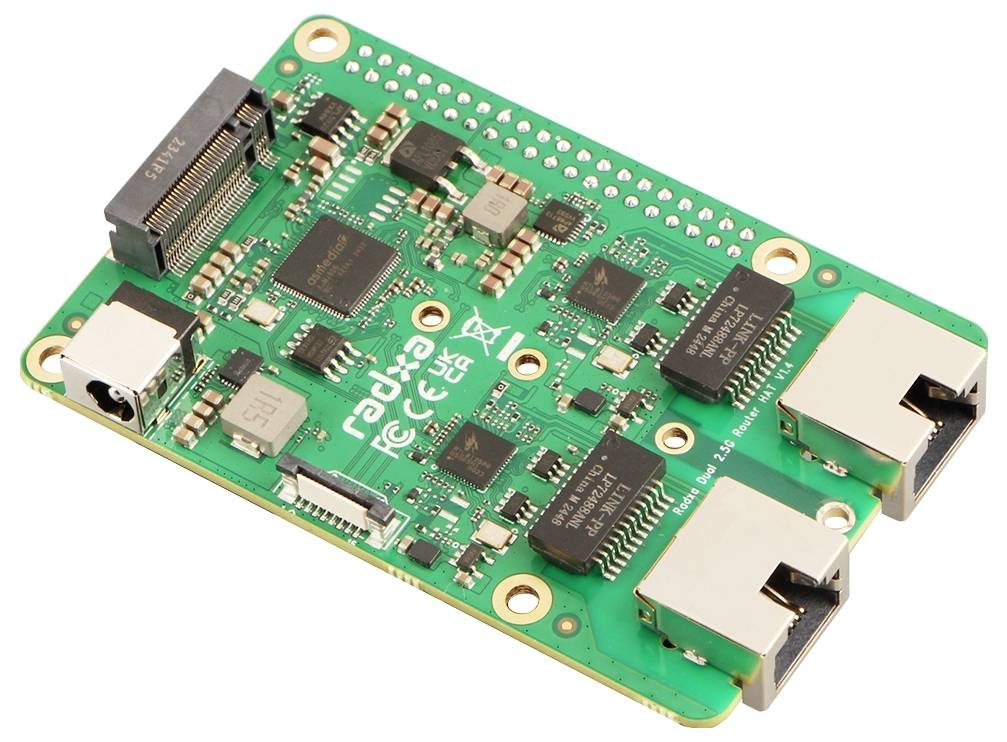

Radxa Dual 2.5G router HAS all-in-one network and memory expansion for SBCS

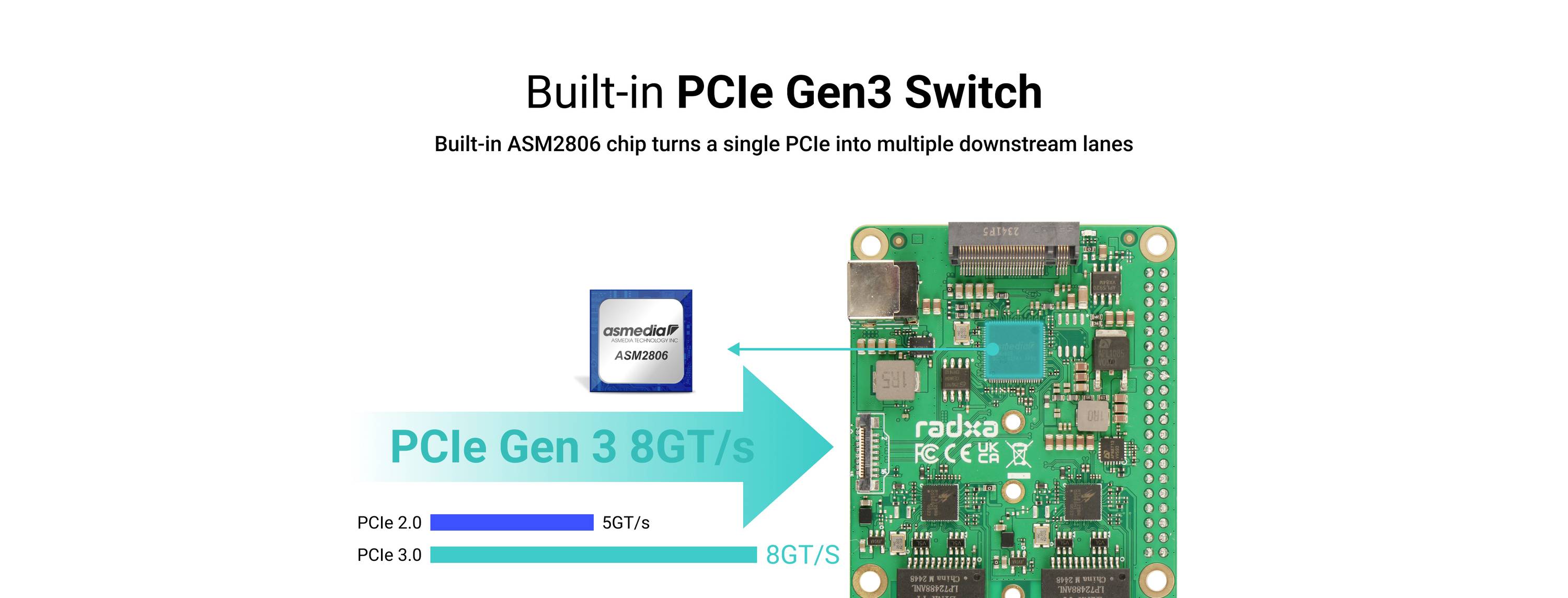

- ASM2806 PCIe3.0 switch provides up to 8 GB/Sperlane
- 40 P IPEX-connection supports uplink capability up to PCIeGen32-Lane
- IPEX-to-FPC adapter limited to PCIe1 channel due to Raspberry Pi and other SBC hardware limitations
- Two 2.5G Ethernet ports for high-speed networks

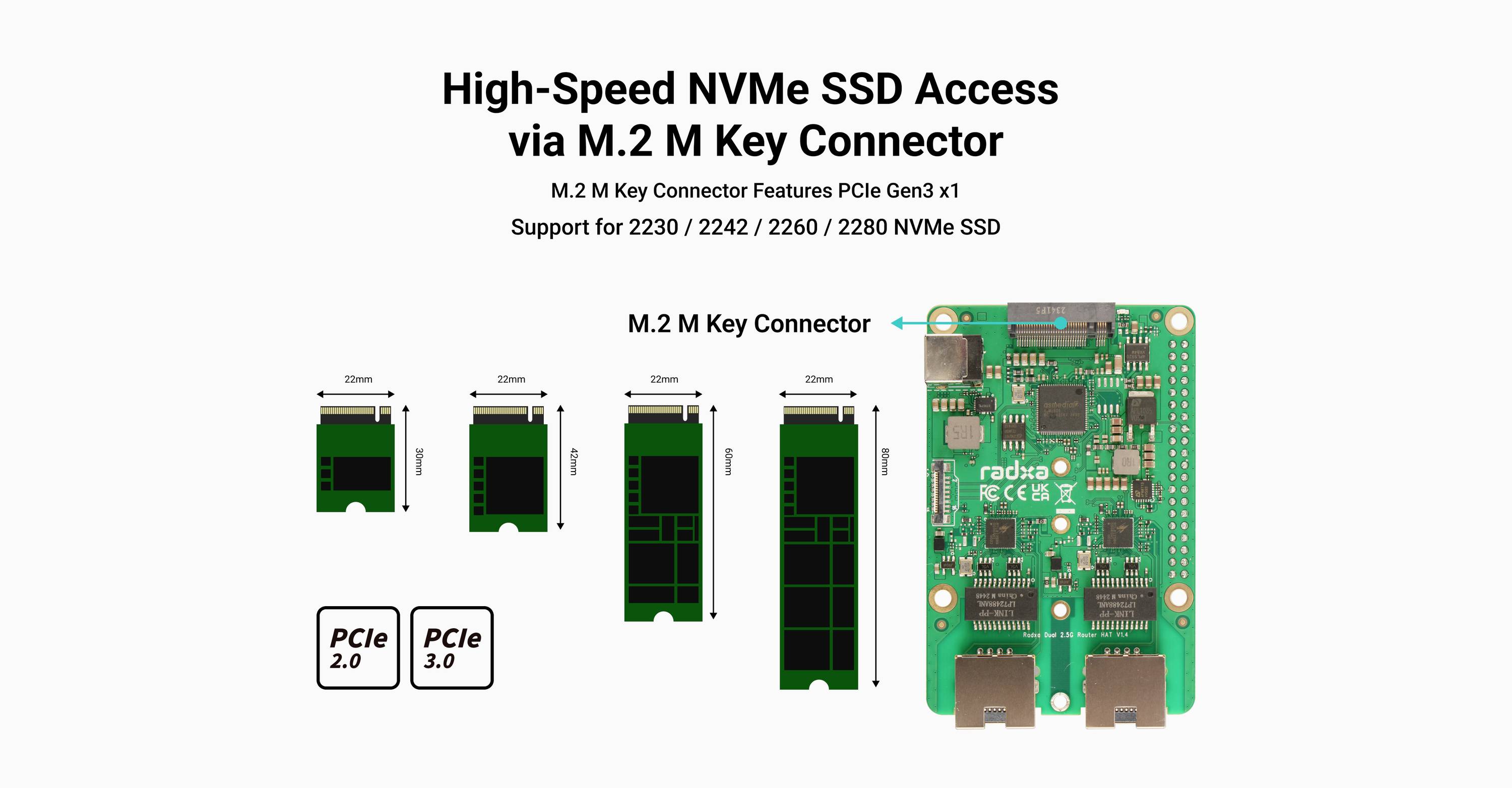

- The M 2M key connection supports NVMe SSDs

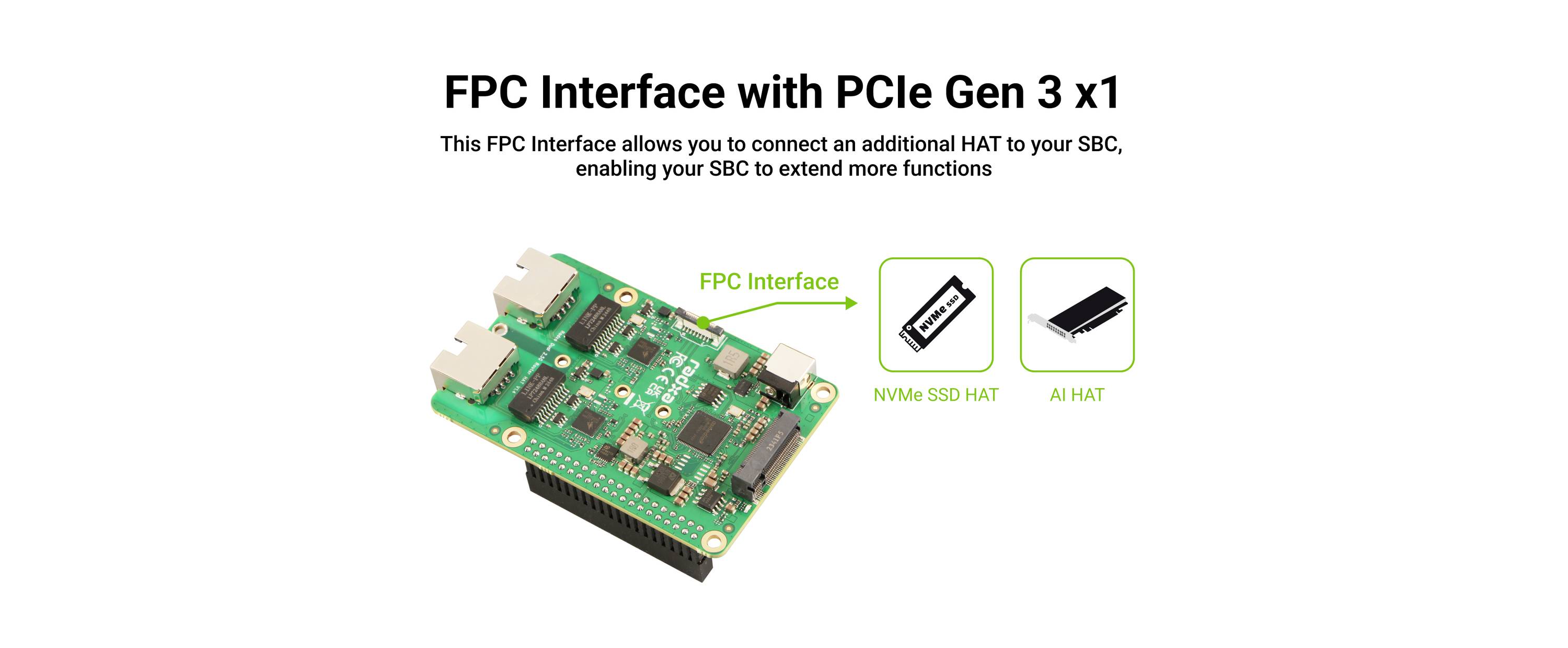

- FPC connector with PCIe1-lane for additional extensions
Technical specifications
- Compatible with ROCK Pi and Raspberry Pi 5
- Product type
Development board
- Suitable for
Raspberry Pi® 5 B
- Compatible with
Rock Pi
Raspberry Pi®
Documents & Downloads
Datasheet
Datasheet 3410159 Radxa RA027G3 Development board Compatible with (development kits): Rock Pi, Raspberry Pi®
Datasheet 3410159 Radxa RA027G3 Development board Compatible with (development kits): Rock Pi, Raspberry Pi®
User & Safety Instructions
User & Safety Instructions 3410159 Radxa RA027G3 Development board Compatible with (development kits): Rock Pi, Raspberry Pi®
Description

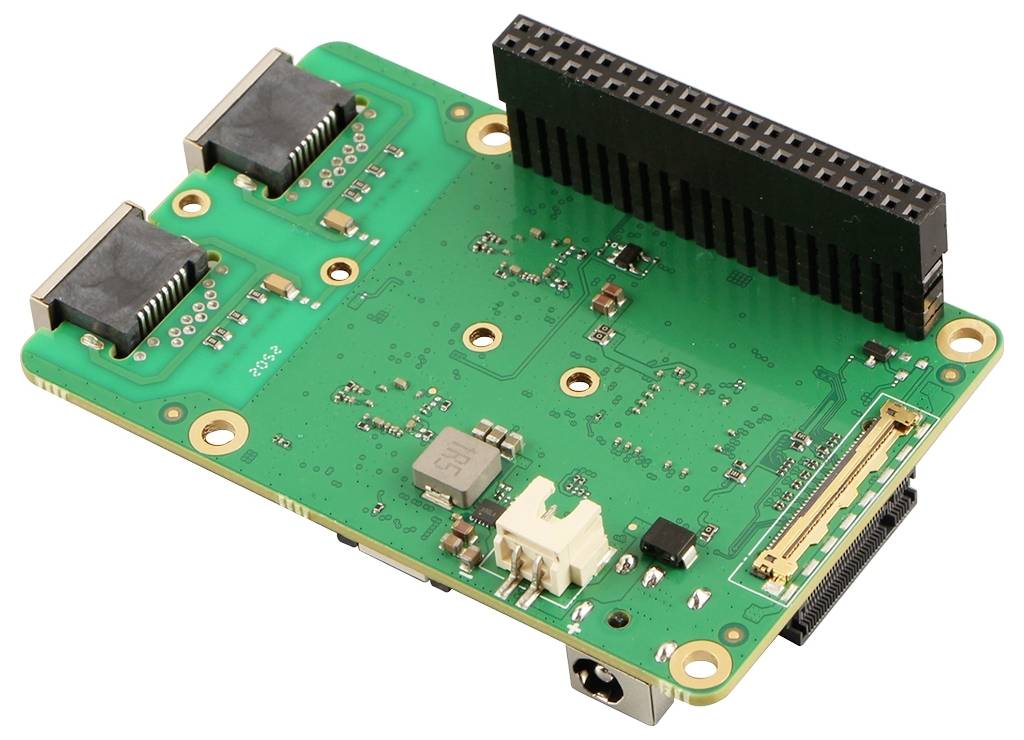

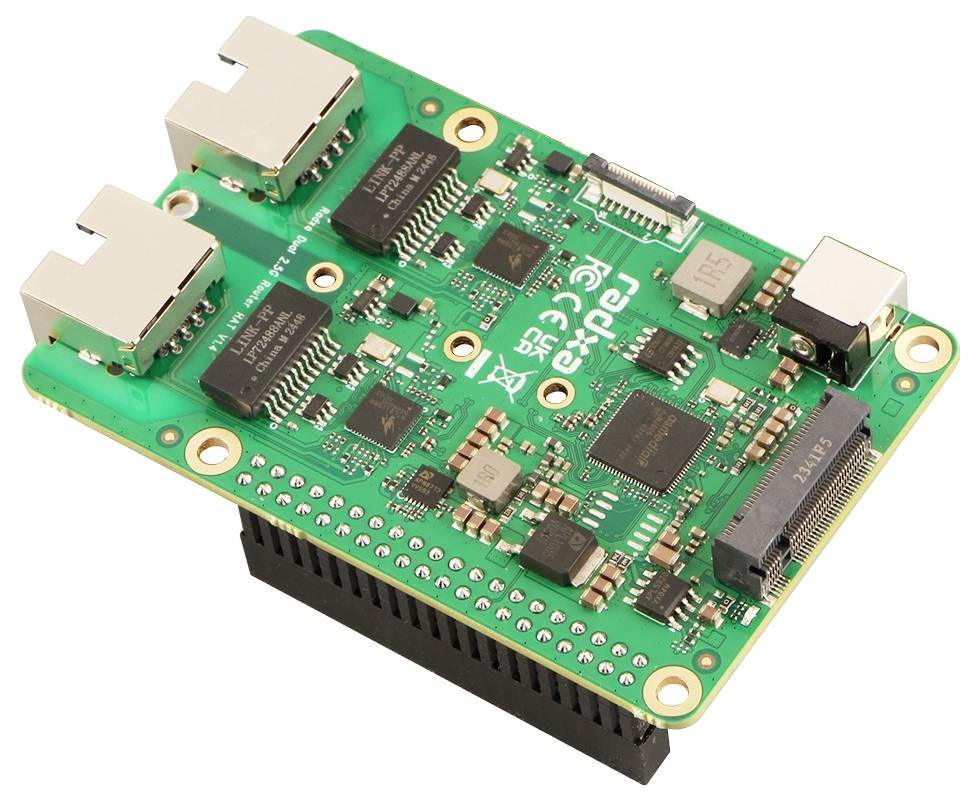

The Radxa Dual 2.5G router HAS a powerful expansion card specially designed for Radxa SBCS and Raspberry Pi 5.

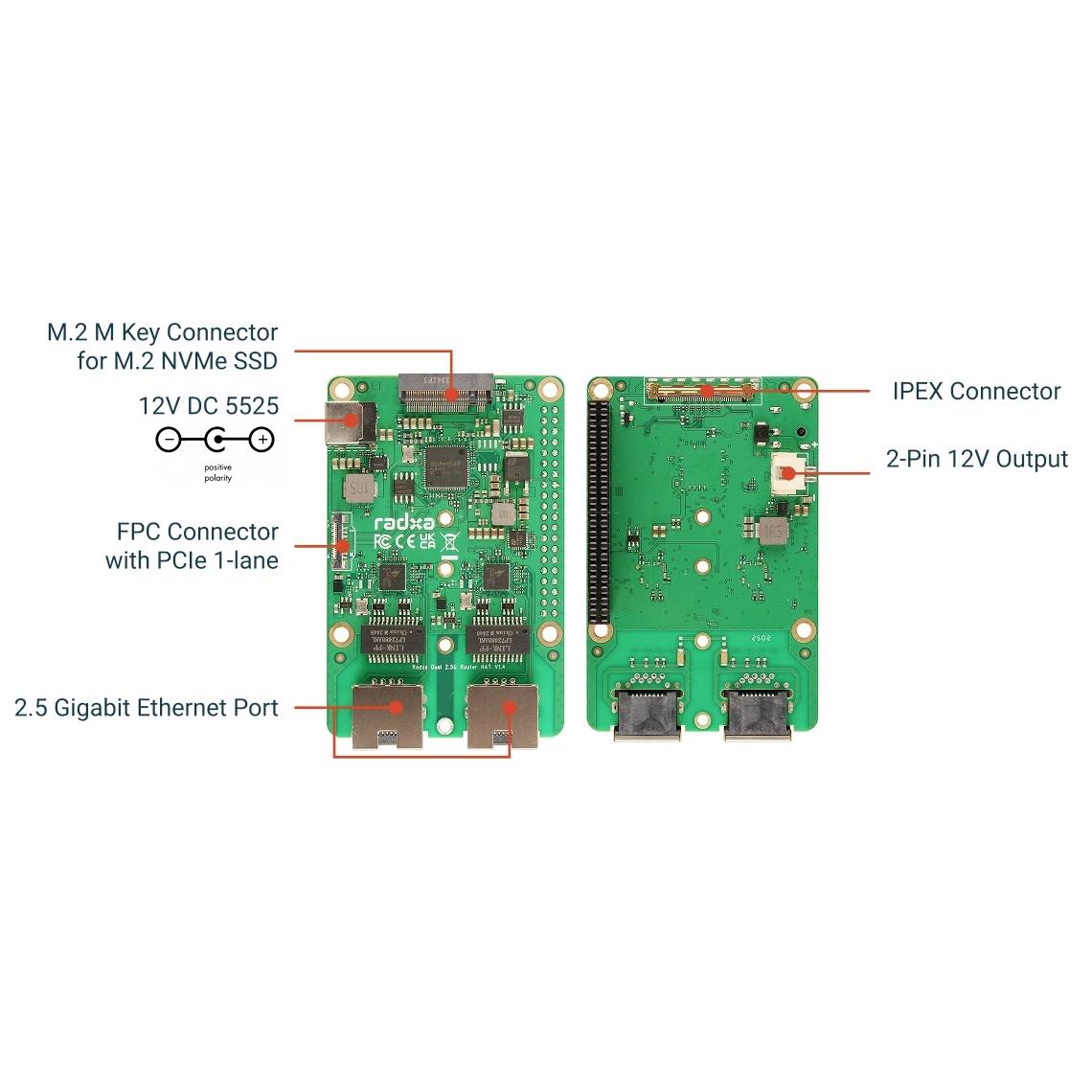

This HAS significantly improved the network and storage capabilities with its built-in PCIe Gen3 switch chip, which extends a single PCIe interface to multiple downstream ports:
Two 2.5 GbE Ethernet ports operated by RTL8125BG controllers
One M.2 M Key slot for NVMe SSDs
An FPC connector with PCIe signals for additional extensions
The HAS a 40P IPEX-connection with PCIe Gen3 2-Lane capability, although the supplied adapter card uses only 1-lane due to limitations of compatible SBCS.
With its exceptional network bandwidth, flexible storage options, and expansion capabilities, the Radxa Dual 2.5G router HAS Ideal for building high-performance network devices, edge computing platforms, and embedded systems.
This text is machine translated.
This HAS significantly improved the network and storage capabilities with its built-in PCIe Gen3 switch chip, which extends a single PCIe interface to multiple downstream ports:
Two 2.5 GbE Ethernet ports operated by RTL8125BG controllers
One M.2 M Key slot for NVMe SSDs
An FPC connector with PCIe signals for additional extensions
The HAS a 40P IPEX-connection with PCIe Gen3 2-Lane capability, although the supplied adapter card uses only 1-lane due to limitations of compatible SBCS.
With its exceptional network bandwidth, flexible storage options, and expansion capabilities, the Radxa Dual 2.5G router HAS Ideal for building high-performance network devices, edge computing platforms, and embedded systems.
This text is machine translated.
Scope of delivery
- Radxa Dual 2.5G router
- 9 × 9 × 5 mm heat sink for cooling the PCIe-switch chip
- CM2×4×5 screws for SSD mounting
- M2×7+3 copper column for SSD-support
- M2.5×20 copper column, M2.5×5+3 copper column and CM2.5×4 screws for the HAT installation
- IPEX-to-FPC adapter cable
