Radxa Rock S D8WSOM Rock Pi S 256 MB 4 x
EAN:
Part number:
Item no:
Highlights & Details
Rock Pi S Core SOM
- 4-core ARM Cortex-A35 CPUComplete implementation of the V8-A ARM architecture instruction setARM Neon Advanced SIMD (Single Instruction, Multiple Data) support for accelerated media and signal processing calculationsARMv8 Cryptography ExtensionsInclude VFP v3 hardware to support single and double accuracy operationsSupport for TrustZone technology256MB/512MB RAM OPTION128M to 4GB storage option802.11 a/b/g/n wifi Bluetooth 2.1/4.2 (Realtek RTL8723DS)Supports eMMC up to 128 GBSupport for USD cards up to GB 128120 PIN available ( ROCK Pi S Core SOM PINOUT )
Technical specifications
- Product type
SBC
- Type
Rock Pi S
- Processor cores (No.)
4 x
256 MB
- Memory type
eMMC
- Memory capacity
128 GB
- Wi-Fi
b/g/n
- Bluetooth
4.2
- Length
35 mm
- Width
35 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2530871 Radxa Rock S D8WSOM Rock Pi S 256 MB 4 x
Description

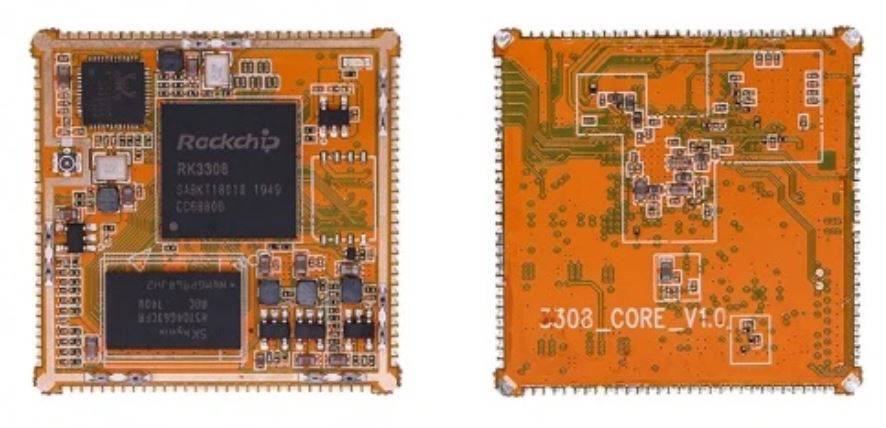

Rock Pi S Core is the som based on Rock Pi S with CPU/RAM/Storage/Wireless on a small stamp size of 35x35mm.
