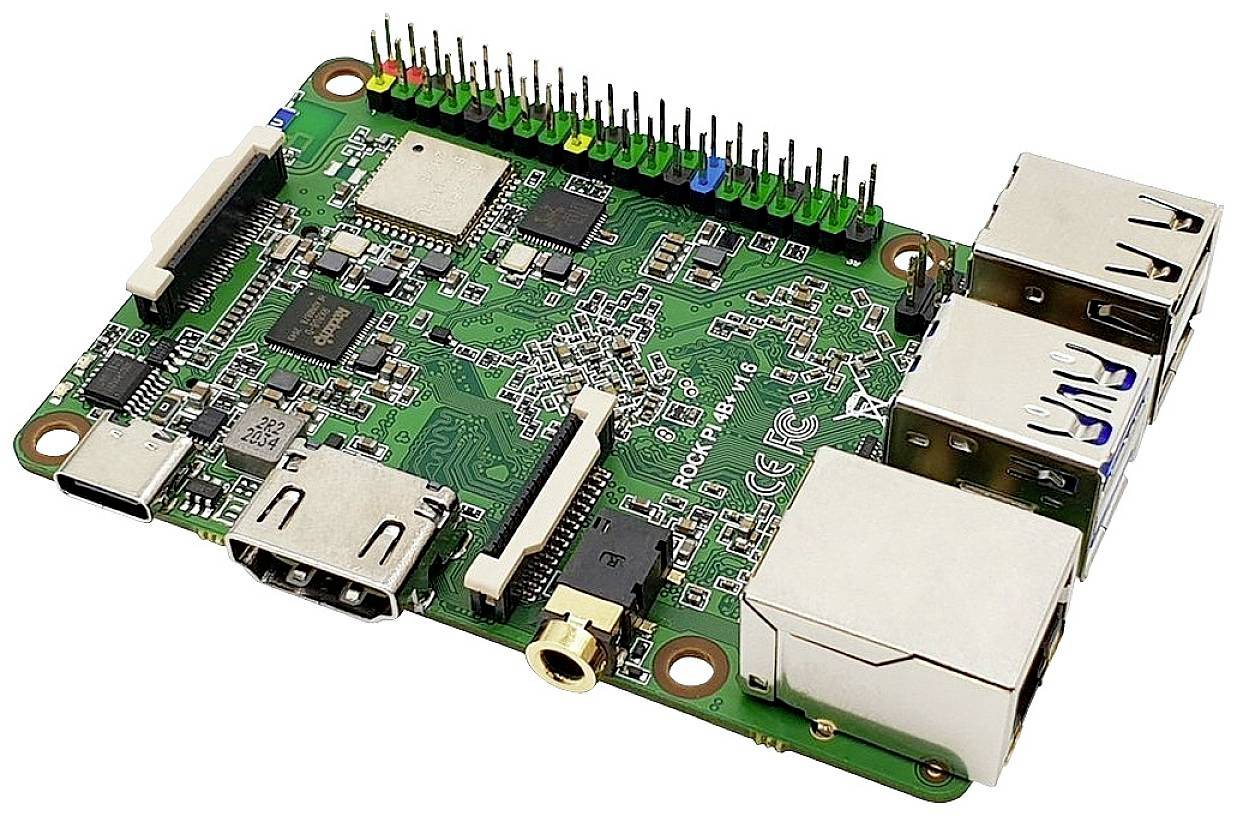

Radxa RS114A+D4E32 Rock 4 A+ 4 GB 6 x 1.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Rock Pi 4 Model A+ OP1 4GB/32GB (without WLAN&Bluetooth) with PoE pins
- 4GB RAMEMMC memory: 32GBWith PoE pins
Technical specifications
- IO 40 pin extension header :1x UART- 2 x SPI bus- 2 x I2C bus- 1 x PCM/I2S- 1 x SPDIF- 1 x PWM- 1 x ADC- 6 x GPIO- 2 x 5V DC Power in- 2 x 3.3V Power pin
- Product type
SBC
- Type
Rock 4 A+
- SoC
Rockchip RK3399
- Processor
ARM Cortex-A72
ARM Cortex-A53
- Processor cores (No.)
6 x
4 GB
- Clock speed
1.4 GHz
- Memory type
DDR4
- Operating system (Version)
w/o OS
- Internal ports
CSI (camera)
DSI (display)
GPIO (40-pin)
- External ports
2x USB 2.0
2x USB 3.0
LAN (10/100/1000)
2x HDMI™
3.5 mm jack
micro SD
USB-C® (current)
- Wi-Fi
no
- Power supply (LOV)
via USB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2627029 Radxa RS114A+D4E32 Rock 4 A+ 4 GB 6 x 1.4 GHz
Description
Rock Pi 4 Model A+ OP1 4GB/32GB (without WLAN&Bluetooth) with PoE pins. Rockchip OP1 based on RK3399.
