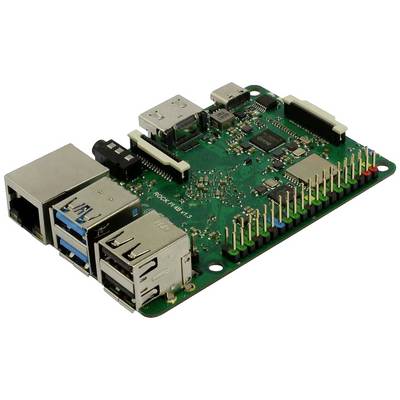

Radxa RS114B-D4_V1.4 Rock 4 B 4 GB 8 x 1.8 GHz
Item no:
Datasheet (PDF)
Highlights & Details
Rock Pi 4 Model B 4GB V1.4 (with dual band 2.4/5GHz WLAN/Bluetooth 5.0) with UFL plug
- dual Cortex-A72 with 1.8Ghz; Quad Cortex-A53 with 1.4GhzMali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11.4GB 64bit dual channel LPDDR4@3200Mb/s, 4GBUSD Slot supports up to 128G USD cardsM.2 port supports up to 2T M.2 NVME SSDHDMI 2.0 up to 4K@60MIPI DSI 2 lanes via FPC connectorAudio 3.5mm jack with microphone supportHD Codec, supports up to 24-bit/96kHz audioMIPI CSI 2 lanes via FPC Connector, supports up to 800MP camerasDual band 2.4/5GHz WLANBluetooth 5.0
- This text is machine translated.
Technical specifications
- IO 40 pin expansion header :1x UART- 2 x SPI bus- 2 x I2C bus- 1 x PCM/I2S- 1 x SPDIF- 1 x PWM- 1 x ADC- 6 x GPIO- 2 x 5V DC power in- 2 x 3.3V power pin
- Product type
SBC
- Type
Rock 4 B
- Processor
ARM Cortex-A53
- Processor cores (No.)
8 x
4 GB
- Clock speed
1.8 GHz
- Operating system (Version)
w/o OS
- Internal ports
CSI (camera)
DSI (display)
GPIO (40-pin)
- External ports
2x USB 2.0
2x USB 3.0
LAN (10/100/1000)
2x HDMI™
3.5 mm jack
micro SD
USB-C® (current)
- Wi-Fi
b/g/n/ac
- Bluetooth
5.0
- Power supply (LOV)
via USB
Documents & Downloads
Datasheet
Datasheet 2530887 Radxa RS114B-D4_V1.4 Rock 4 B 4 GB 8 x 1.8 GHz
User & Safety Instructions
User & Safety Instructions 2530887 Radxa RS114B-D4_V1.4 Rock 4 B 4 GB 8 x 1.8 GHz
