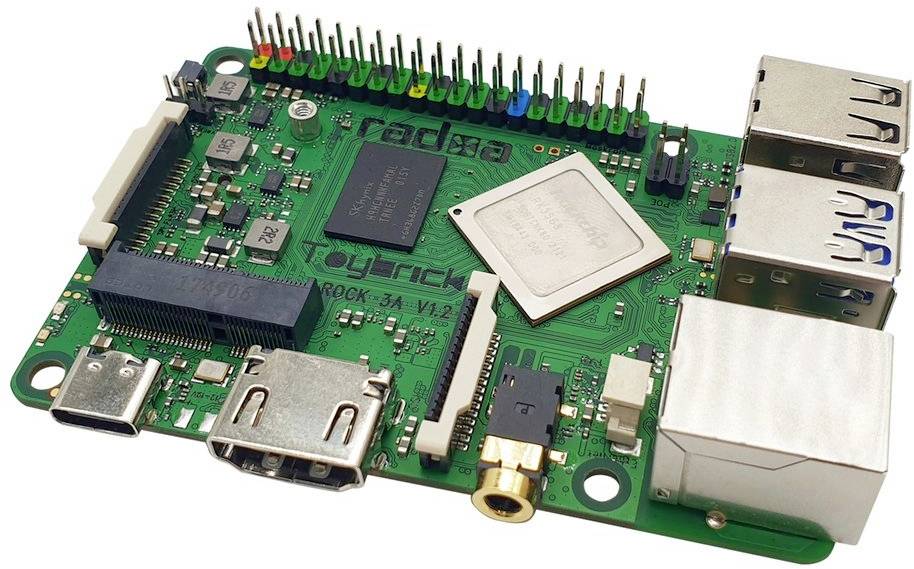

Radxa RS117-D2 Rock 3 A 2 GB 4 x 2.0 GHz
EAN:
Part number:
Item no:
Radxa Rock 3A 2GB RK3568 Quad-core Cortex-A55, freqency 2GHz Mali G52 2GB LPDDR4
Technical specifications
- Product type
SBC
- Type
Rock 3 A
- SoC
Rockchip RK3568
- Processor
Quad-Core Cortex-A55
- Processor cores (No.)
4 x
2 GB
- Clock speed
2.0 GHz
- Operating system (Version)
w/o OS
- Internal ports
CSI (camera)
DSI (display)
GPIO (40-pin)
- External ports
USB 2.0
USB 3.0
HDMI™
3.5 mm jack
- Power supply (LOV)
via USB
- Output voltage
9 V DC
- Output current
2 A
- Length
85 mm
- Width
56 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2627023 Radxa RS117-D2 Rock 3 A 2 GB 4 x 2.0 GHz
Description
ROCK 3A is basically a little brother of THE ROCK Pi 4, with some improvements over THE ROCK Pi 4. ROCK 3A will run under Debian 10, which is maintained by the Rockchip Toybrick team. Other community distributions are also supported.
Features
- RK3568 based, Quad A55 with up to 2GHz, Mali G52 GPU, 0.8T NPUPlug-in eMMC module2/4/8GB LPDDR4 3200MT/SDRAM controller frequency up to 1560MHzQC/PD power support, with a new generation QC/PD protocol IC2x USB2 similar to ROCK Pi 42x USB3 (1x OTG+1x HOST)The two USB3 can be configured in SATA mode with a SATA breakout cableGbE with PoE supportM.2 M Key for NVMe with PCIe 3.0 x2 lanesM.2 E-Key for connectivity with PCIe 2.0 x1/SDIO/UART, supports WiFi 6 cards1x MIPI DSI, 1x MIPI CSI, compatible with ROCK Pi 440Pin GPIO mostly compatible with ROCK Pi 4
