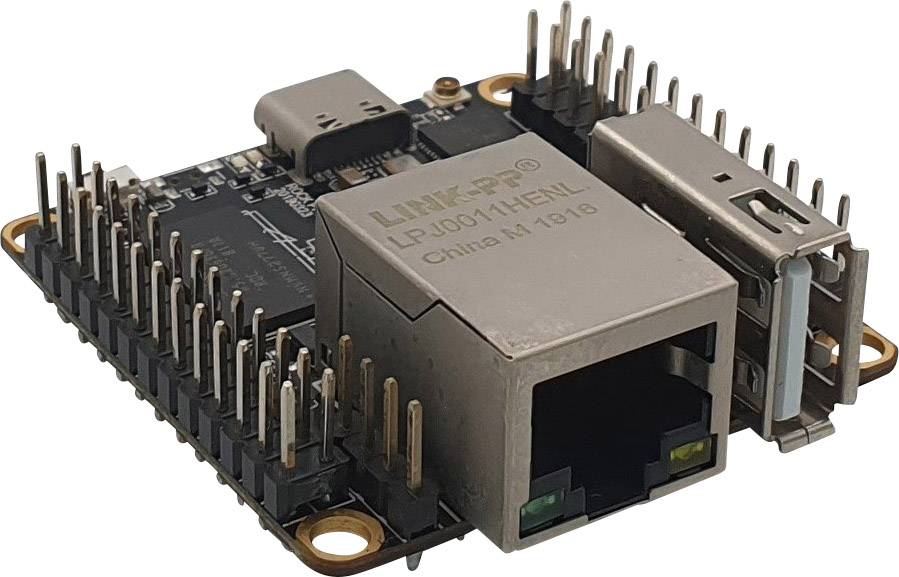

A mini-computer with network connectivity, numerous pins and connection options, suitable for electronics projects and control systems.

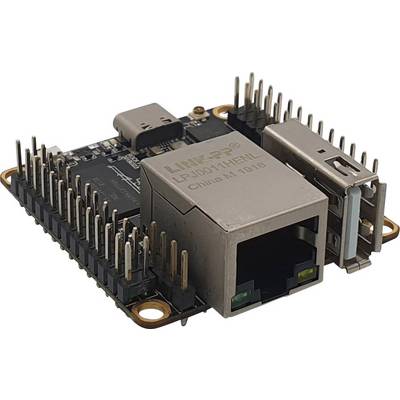

A mini-computer with network connectivity, numerous pins and connection options, suitable for electronics projects and control systems.

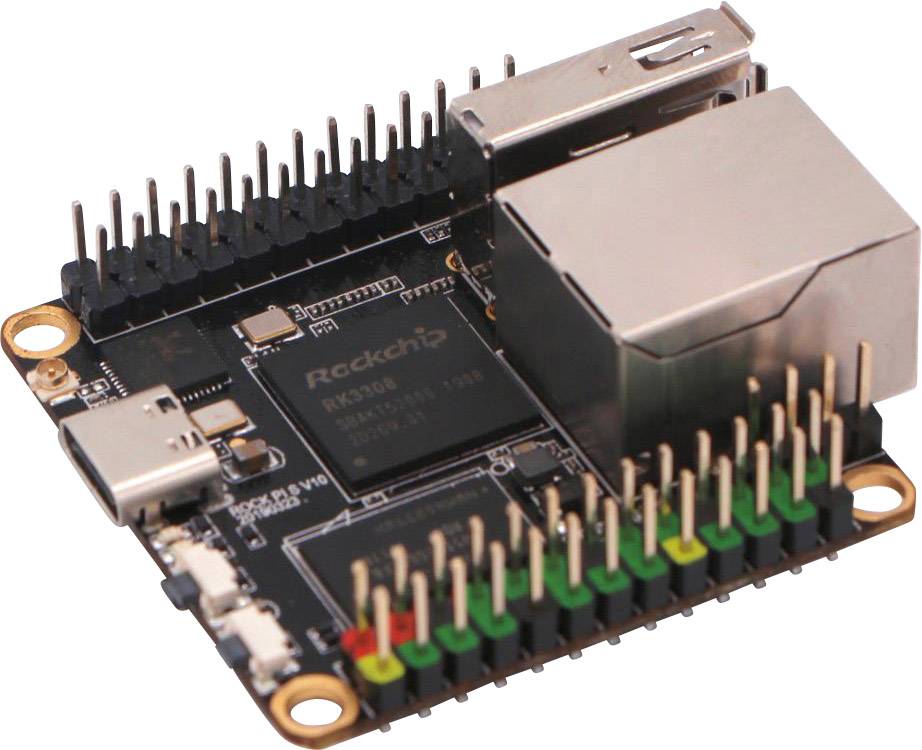

Small single-board computer with USB port, Ethernet connection and numerous GPIO pins; suitable for electronics projects.

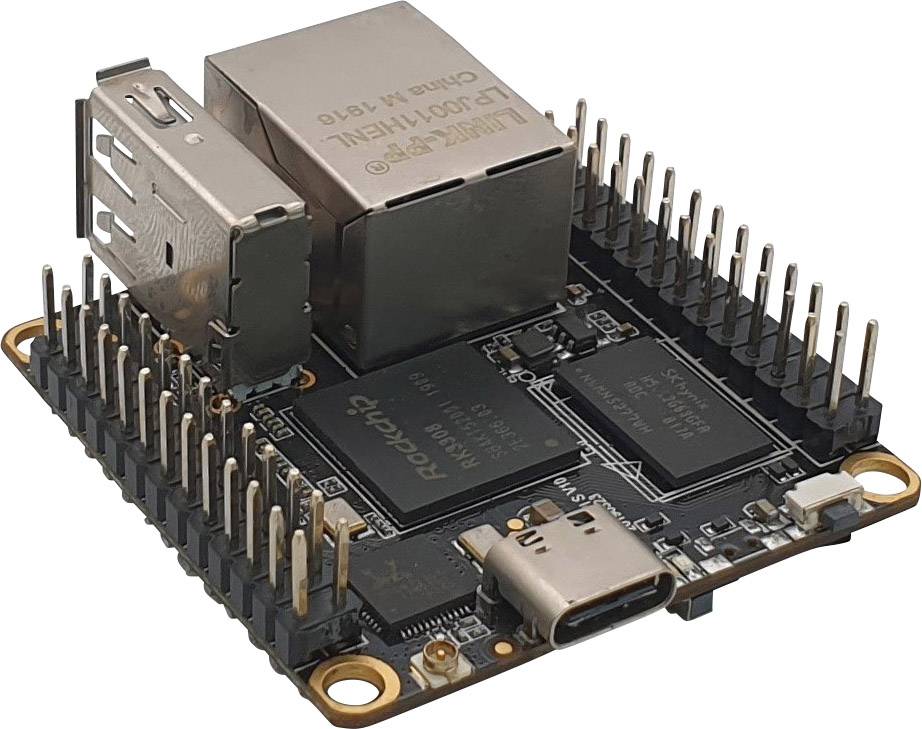

A single-board computer with Ethernet and USB-C ports. Main components and pins are visible. Suitable for DIY projects.

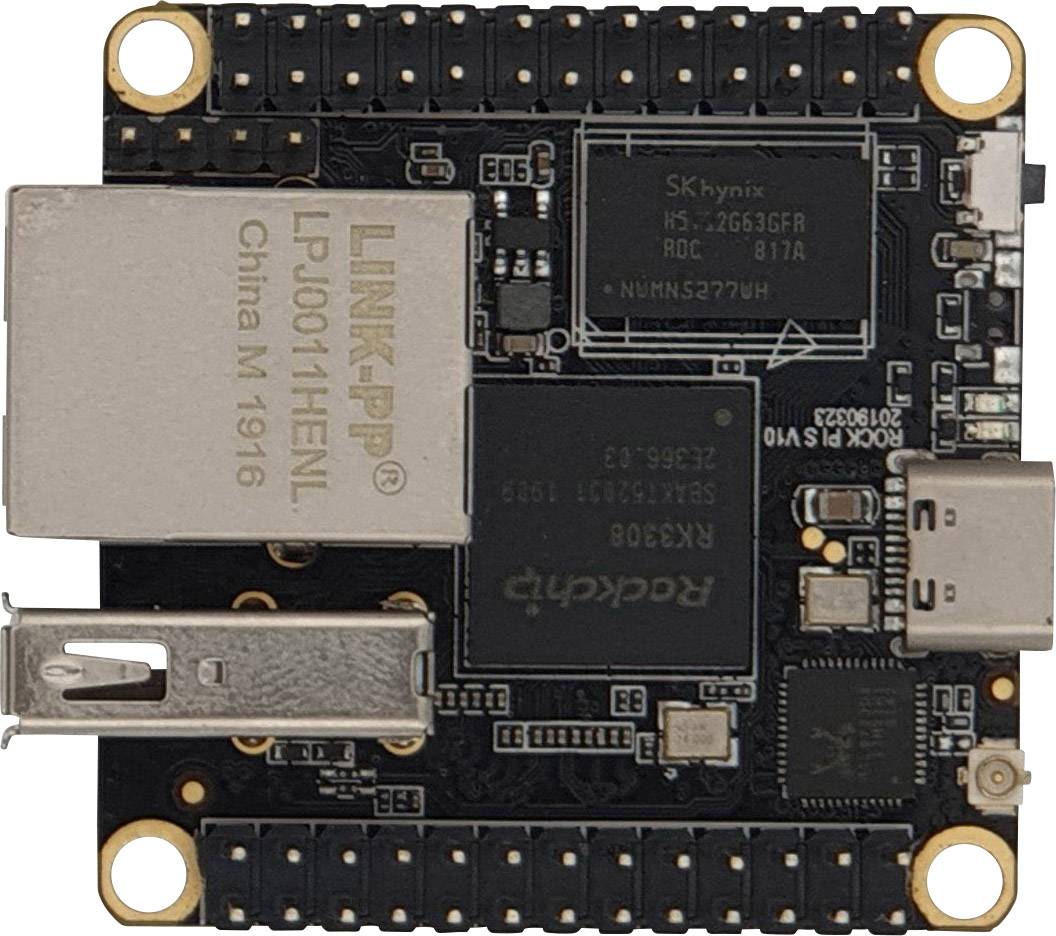

Radxa RS308-D4 Rock Pi S 512 MB 4 x-3

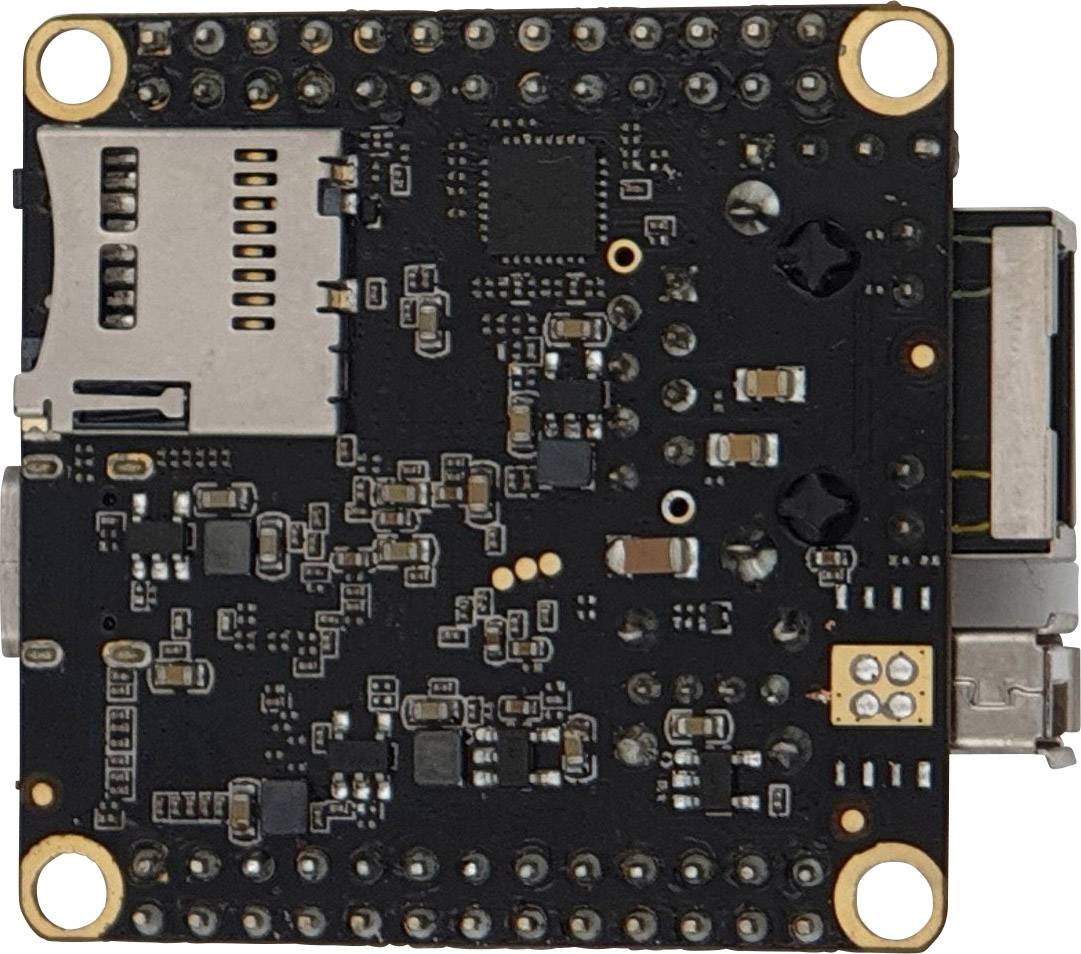

Small, square microcontroller board with numerous electronic components, visible solder points and an SD card slot.

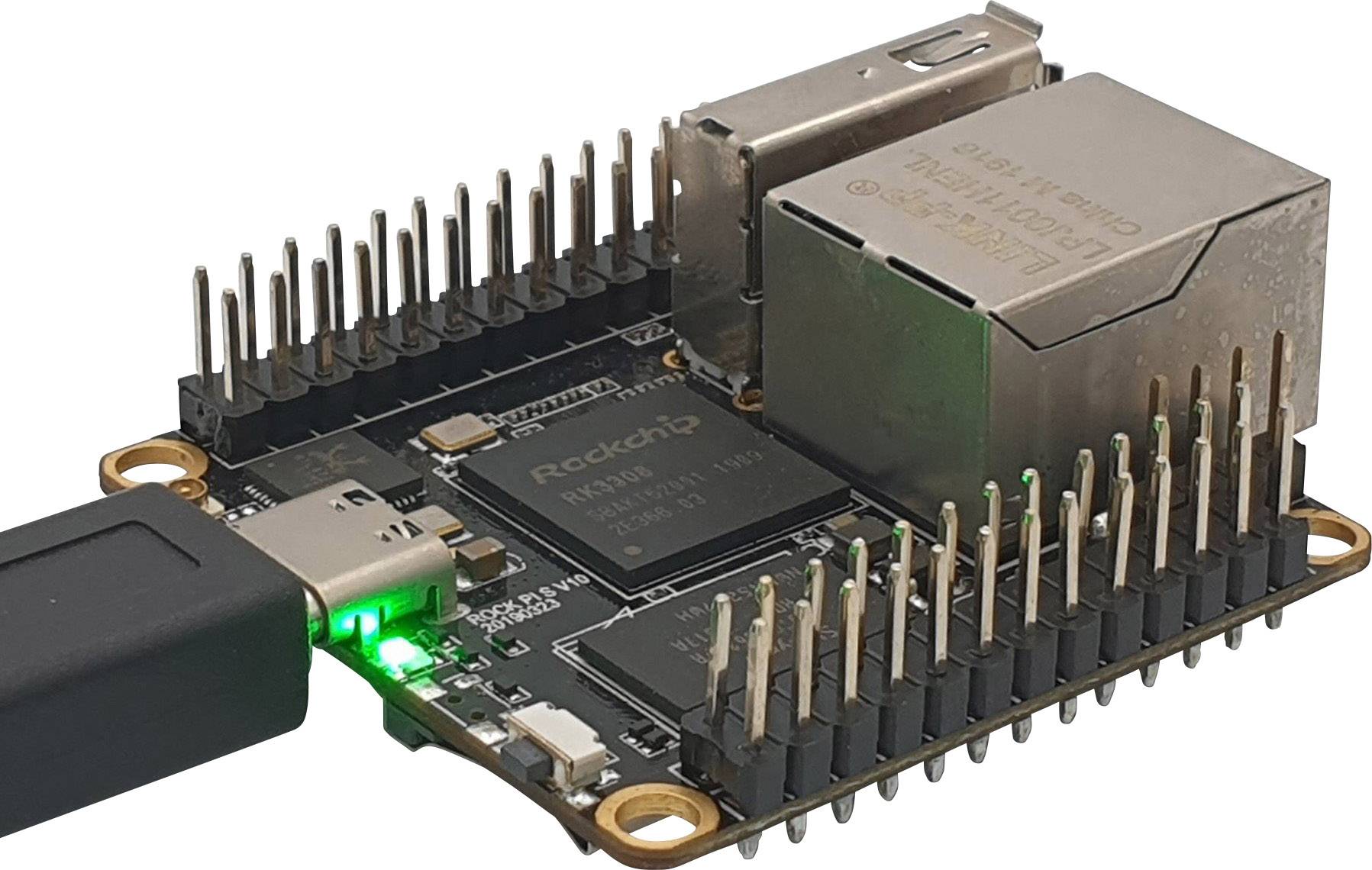

A single-board computer shows a USB-C power supply and Ethernet port. Developer board for hardware programming.

1/6

Radxa

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Rock Pi S - 512MB, without BT & WiFi

Rockchip RK3308 Quad A35 64bit processor with integrated VAD
512MB RAM versions
USB 2.0 OTG (TYPE C) + USB 2.0 HOST (TYPE A)
RJ45 100MB Ethernet
Optional PoE (additionally required)
26-pin GPIO connector strip
26-pin Voice/audio connector strip with I2S, PCM, TDM, PDM, SPDIF and HDMI ARC
Size 1.5x1.5 inches (~38.1x38.1mm)
Debian and Buildroot tested successfully

Technical specifications

Product type: SBC

Type: Rock Pi S

SoC: Rockchip RK3308

Processor cores (No.): 4 x

: 512 MB

Memory type: Non-permanent

Operating system (Version): Linux

Memory capacity: 512 MB

Internal ports: GPIO (26-pin)

External ports: USB 2.0

Length: 38.1 mm

Width: 38.1 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2176713 Radxa RS308-D4 Rock Pi S 512 MB 4 x

Description

An extremely "rocking" mini-computer for your projects!
