Radxa RS309-D4W1 Rock Pi E 512 MB 4 x 1.5 GHz
EAN:
Part number:
Item no:
Highlights & Details
Rock Pi E D4W1 dual Ethernet board RK3328 512MB RAM 802.11 a/b/g/n, 2.4G
- Rockchip RK3328 SOC quad-core Cortex A53 up to 1.5GHzNeon and FPU coprocessor with common L2 cacheMali 450MP4 GPU512 MB RAMWiFi 802.11 a/b/g/nBluetooth 4.2
Technical specifications
- USB A 3.0 portAudio ConnectionUSB-C power connector (OTG) TF Card Interface (up to GB 128)EMMC 5.1 interface
- Product type
SBC
- Type
Rock Pi E
- Processor
ARM Cortex-A53
- Processor cores (No.)
4 x
- GPU
Mali-450MP4
512 MB
- Clock speed
1.5 GHz
- Memory type
DDR3
- Memory capacity
512 MB
- External ports
USB 3.0
- Wi-Fi
built-in
- Bluetooth
4.2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2530872 Radxa RS309-D4W1 Rock Pi E 512 MB 4 x 1.5 GHz
Description

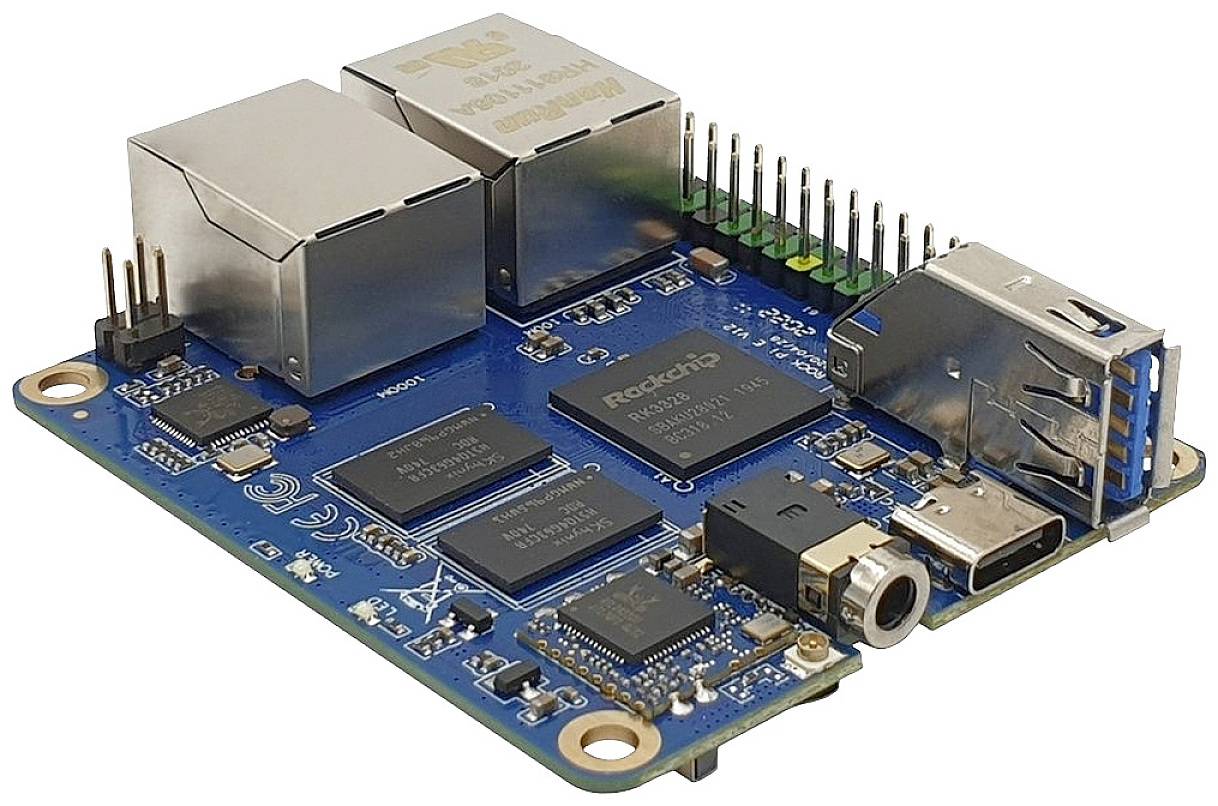

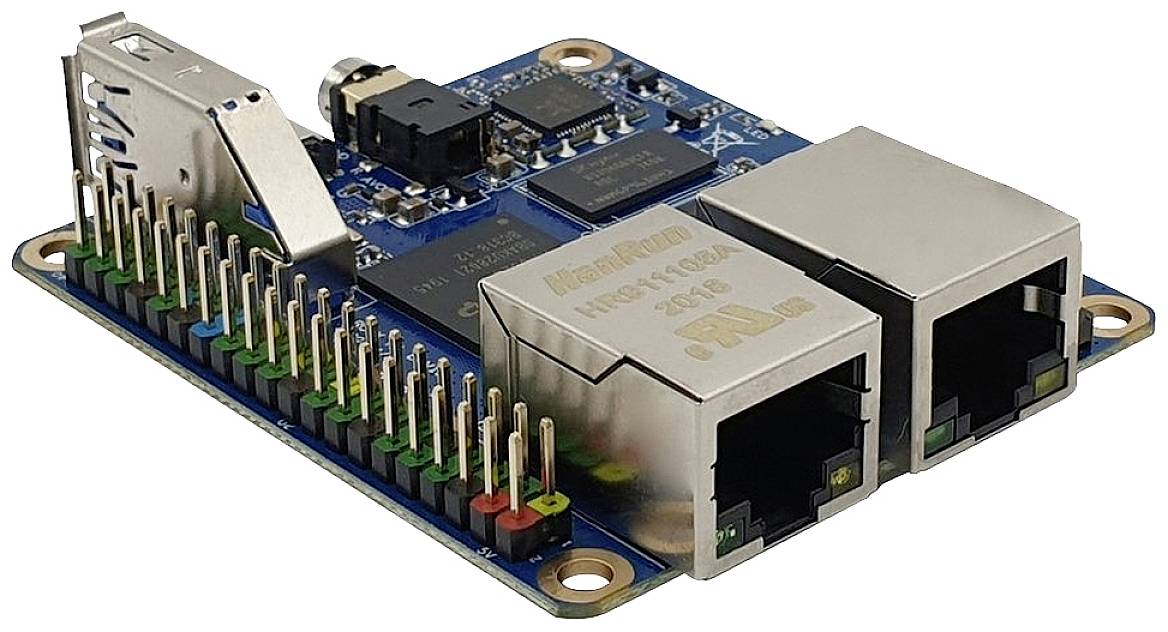

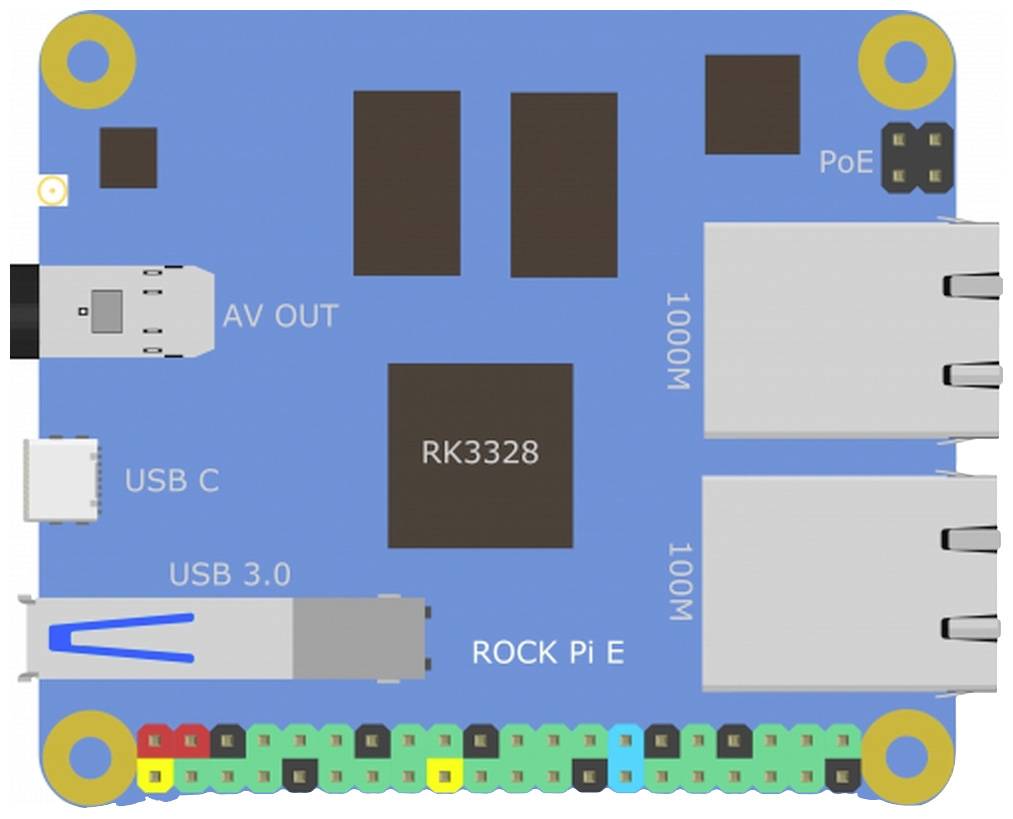

ROCK Pi E is the youngest member of the rock-chip-based Rock Pi family. Powered by a Rockchip RK3328 64bit quad-core CPU, the board offers a lot of outstanding functions.With up to GB of DDR3 RAM, USD and eMMC interface, USB3.0, dual Ethernet and wireless connectivity at 2.5 x 2.2 inches (56 x 65 mm), the Rock Pi E is perfectly suited for IoT and network applications. The flexibility of the SBC is extended with optionally available eMMC 5.1 modules or a PoE-hat for power supply via network. Feature Hats will further enhance the functionality and possible use cases of this SBC. No heat management required.
