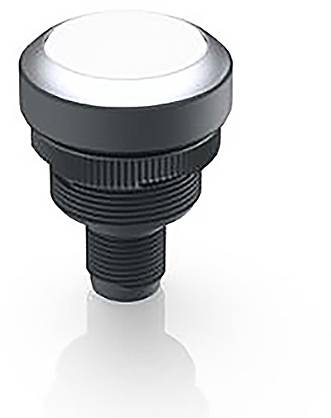

RAFI 1.10.011.001/0220 1.10.011.001/0220 Pushbutton 35 V 0.1 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Contact type
1 maker
Switching voltage
35 V
Switching current (max.)
0.1 A
Casing/button colour
White
Silver
Datasheet (PDF)
Technical specifications
- can be illuminated: yes
- Product type
Pushbutton
- Casing/button colour
White
Silver
- Functions
momentary
- Lighting type
incl. lighting
- Contact type
1 maker
- Contact material
Gold
- Connection
M12 plug
- Switching voltage
35 V
- Switching current (max.)
0.1 A
- Length
40 mm
- Width
29.8 mm
- Height
29.8 mm
- Recess diameter
22.3 mm
- Recess depth
30.2 mm
- Content
1 pc(s)
- Type
1.10.011.001/0220
- Dim
(L x W x H) 40 x 29.8 x 29.8 mm
- Actuating force
5.0 N
- Max. switching capacity
1 W
