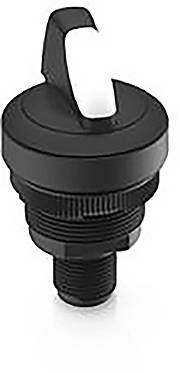

RAFI 1.10.021.201/0221 RAMO 22 Rotary switch 32 V 0.1 A 1 x 40 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rotary switch
Contact type
1 maker
Switching voltage
32 V
Switching current (max.)
0.1 A
Casing/button colour
White
Black
Datasheet (PDF)
Technical specifications
- Can be illuminated: Yes; rear connection: M12 4-pin A-coded
- Product type
Rotary switch
- Casing/button colour
White
Black
- Functions
momentary
- Switching angle
1 x 40 °
- Lighting type
incl. lighting
- Contact type
1 maker
- Contact material
Gold
- Connection
M12 plug
- Switching voltage
32 V
- Switching current (max.)
0.1 A
- Length
29.8 mm
- Width
29.8 mm
- Height
53.9 mm
- Recess diameter
22.3 mm
- Recess depth
30.1 mm
- Content
1 pc(s)
- Type
RAMO 22
- Dim
(L x W x H) 29.8 x 29.8 x 53.9 mm
Documents & Downloads
Datasheet
Datasheet 3059666 RAFI 1.10.021.201/0221 RAMO 22 Rotary switch 32 V 0.1 A 1 x 40 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3059666 RAFI 1.10.021.201/0221 RAMO 22 Rotary switch 32 V 0.1 A 1 x 40 ° 1 pc(s)
