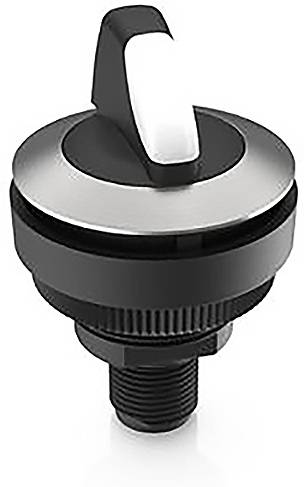

RAFI 1.11.021.022/0220 RAMO 30 Rotary switch 32 V 0.1 A 2 x 40 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rotary switch
Contact type
2 makers
Switching voltage
32 V
Switching current (max.)
0.1 A
Casing/button colour
Stainless steel
Datasheet (PDF)
Technical specifications
- Can be illuminated: Yes; rear connection: M12 8-pin A-coded
- Product type
Rotary switch
- Casing/button colour
Stainless steel
- Functions
momentary
- Switching angle
2 x 40 °
- Lighting type
incl. lighting
- Contact type
2 makers
- Contact material
Gold
- Connection
M12 plug
- Switching voltage
32 V
- Switching current (max.)
0.1 A
- Length
34.5 mm
- Width
34.5 mm
- Height
53.9 mm
- Recess diameter
30.3 mm
- Recess depth
36.3 mm
- Content
1 pc(s)
- Type
RAMO 30
- Dim
(L x W x H) 34.5 x 34.5 x 53.9 mm
