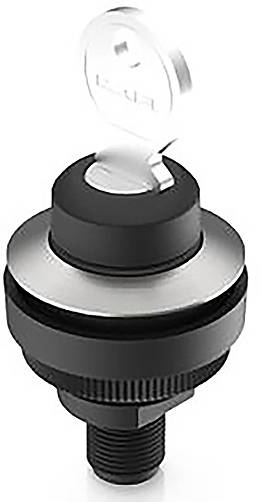

RAFI 1.11.051.005/0000 RAMO 30 K Key switch 32 V 0.1 A 2 x 90 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Key switch
Functions
latch
Switching voltage
32 V
Switching current (max.)
0.1 A
Casing/button colour
Stainless steel
Datasheet (PDF)
Technical specifications
- Connection at rear: M12 4-pin A-coded; withdrawal position key: 0
- Product type
Key switch
- Casing/button colour
Stainless steel
- Functions
latch
- Switching angle
2 x 90 °
- Contact type
2 makers
- Contact material
Gold
- Connection
M12 plug
- Switching voltage
32 V
- Switching current (max.)
0.1 A
- Length
34.5 mm
- Width
34.5 mm
- Height
75.1 mm
- Recess diameter
30.3 mm
- Type
RAMO 30 K
- Content
1 pc(s)
- Dim
(L x W x H) 34.5 x 34.5 x 75.1 mm
- Recess depth
36.3 mm
