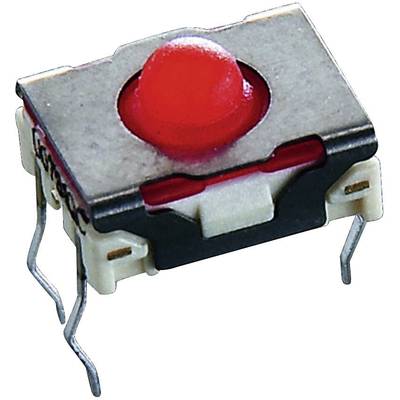

RAFI 1.14.002.106/0000 MICON 5 1.14.002.106/0000 Pushbutton 42 V DC 0.1 A 1 x Off/(On) momentary (L x W x H) 6.4 x 5.1 x
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Solder pins
Datasheet (PDF)
47 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.51
10
8% = € 0.12
€ 1.39
25
11% = € 0.17
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.51 / piece)
€ 2.60
-42 %
€
Technical specifications
- Product type
Pushbutton
- Switch/button features
Protruding
- Casing/button colour
Black
Red
- Functions
momentary
- Type
THT
- Lighting type
None
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Contact material
Gold (Au)
- Connection
Solder pins
- Switching voltage
42 V DC
- Switching current (max.)
0.1 A
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Length
6.4 mm
- Width
5.1 mm
- Height
3.85 mm
- Actuating force
3 N
- Content
1 pc(s)
- Dim
(L x W x H) 6.4 x 5.1 x 3.85 mm
- RoHS-compliant
Yes
- Front panel cut-out
6.35 x 5.1 mm
- Board thickness (max.)
3 mm
- Type
MICON 5 1.14.002.106/0000
- Switching voltage
42 V DC
- Switching current
100 mA
- Type
1.14.002.106/0000
- Actuating force
3 N
- Temperature range
-40 - +85 °C
Documents & Downloads
Datasheet
Datasheet 702539 RAFI 1.14.002.106/0000 MICON 5 1.14.002.106/0000 Pushbutton 42 V DC 0.1 A 1 x Off/(On) momentary (L x W x H) 6.4 x 5.1 x
User & Safety Instructions
User & Safety Instructions 702539 RAFI 1.14.002.106/0000 MICON 5 1.14.002.106/0000 Pushbutton 42 V DC 0.1 A 1 x Off/(On) momentary (L x W x H) 6.4 x 5.1 x
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
