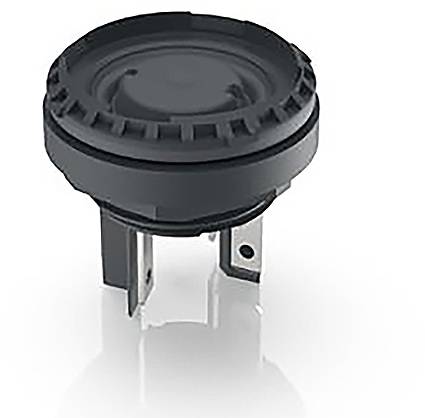

RAFI 1.15.210.920/0000 1.15.210.920/0000 Illuminated push button 35 V 0.1 A momentary (L x W x H) 23.5 x 23.5 x 22.3 mm
EAN:
Part number:
Item no:
Product type
Illuminated push button
Contact type
1 maker
Connection
Type C CEE 7/16 plug 2.8 mm
Switching voltage
35 V
Switching current (max.)
0.1 A
Datasheet (PDF)
Technical specifications
- can be illuminated: yes
- Product type
Illuminated push button
- Functions
momentary
- Contact type
1 maker
- Contact material
Gold
- Connection
Type C CEE 7/16 plug 2.8 mm
- Switching voltage
35 V
- Max. switching capacity
1 W
- Switching current (max.)
0.1 A
- Length
23.5 mm
- Width
23.5 mm
- Height
22.3 mm
- Recess diameter
16.2 mm
- Recess depth
18 mm
- Content
1 pc(s)
- Dim
(L x W x H) 23.5 x 23.5 x 22.3 mm
- Type
1.15.210.920/0000
Documents & Downloads
Datasheet
Datasheet 3059764 RAFI 1.15.210.920/0000 1.15.210.920/0000 Illuminated push button 35 V 0.1 A momentary (L x W x H) 23.5 x 23.5 x 22.3 mm
User & Safety Instructions
User & Safety Instructions 3059764 RAFI 1.15.210.920/0000 1.15.210.920/0000 Illuminated push button 35 V 0.1 A momentary (L x W x H) 23.5 x 23.5 x 22.3 mm
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
