A red emergency stop button with a yellow housing and green ring, used for safety shutdown in machinery or plant equipment.

A red emergency stop button with a yellow housing and green ring, used for safety shutdown in machinery or plant equipment.

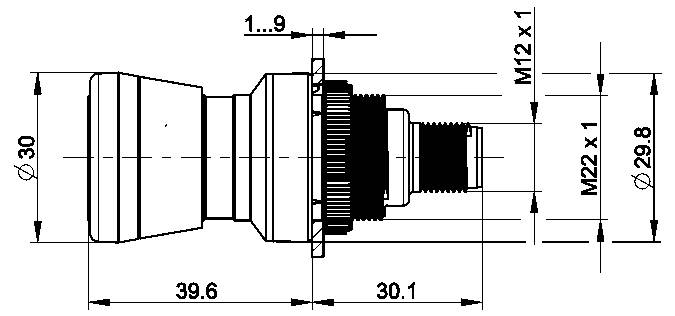

'Technical drawing of a cylindrical mechanical part with dimensions labeled: overall length 39.6mm, diameter 30mm, thread sizes M12 x 1 and M22 x 1.'

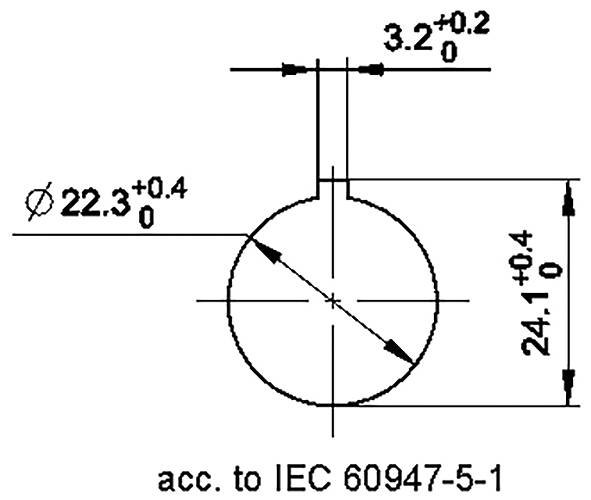

'Diagram of a circular object with dimensions: diameter 22.3±0.4mm, height 24.1±0.4mm. Includes vertical extension 3.2±0.2mm. Labeled acc. to IEC 60947-5-1.'

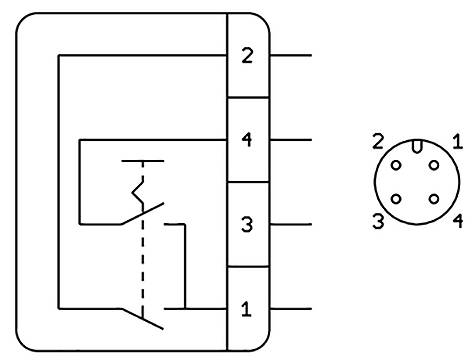

'Relay schematic with pin configuration: 1 through 4. Left shows relay coil and switch diagram; right depicts pin arrangement in a 4-pin layout.'

1/4

RAFI

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Kill switch

Unlocking mechanism: Turn

Print motif: EMERGENCY STOP

Lighting type: None

Contact material: Gold

Contact type: 2 breakers

Connection: M12 plug

Recess diameter: 22.3 mm

Functions: latch

Length: 30 mm

Width: 30 mm

Height: 69.7 mm

Switching voltage: 35 V

Switching current (max.): 0.1 A

Type: RAMO 22

Content: 1 pc(s)

Dim: (L x W x H) 30 x 30 x 69.7 mm

Recess depth: 30.1 mm

Documents & Downloads

Datasheet

Datasheet 3059623 RAFI RAMO 22 Kill switch 35 V 0.1 A 2 breakers 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3059623 RAFI RAMO 22 Kill switch 35 V 0.1 A 2 breakers 1 pc(s)
