Raspberry Pi® Compute Modul 3 4GB Raspberry Pi® Compute Modul 3 1 GB 4 x 1.2 GHz
EAN:
Part number:
Item no:
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
14-day return policy included
Technical specifications
- Product type
SBC
- Type
Raspberry Pi® Compute Modul 3
- SoC
Broadcom BCM2837
- Processor
ARM Cortex-A53
- Processor cores (No.)
4 x
- GPU
Broadcom Video Core IV
1 GB
- Clock speed
1.2 GHz
- Memory type
DDR2
- Operating system (Version)
w/o OS
- Memory capacity
4 GB
- Internal ports
CSI (camera)
DSI (display)
GPIO (40-pin)
- External ports
sMMC
- Length
68 mm
- Width
31 mm
- Height
4 mm
- Flash memory
4 GB
- Series
Raspberry Pi® Compute Modul 3
- Software included
No
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1533270 Raspberry Pi® Compute Modul 3 4GB Raspberry Pi® Compute Modul 3 1 GB 4 x 1.2 GHz
Description

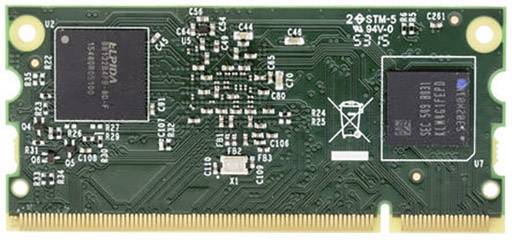

The Raspberry compute modules 3 are for developers, the functionality of the Raspberry Pi 3 wish for your embedded design but a smaller form factor (67.6 x 31 mm).
These modules are DDR2 SODIMM, mechanically compatible system On-chip modules (SoMs) with a BCM2837 processor system-on-Chip (SoC) with 1 GB LPDDR2 RAM and 4 GB eMMC flash memory. These modules have extra other input/output (I/O) interfaces plus to the Raspberry Pi-Platinen, Model A/B.
This text is machine translated.
These modules are DDR2 SODIMM, mechanically compatible system On-chip modules (SoMs) with a BCM2837 processor system-on-Chip (SoC) with 1 GB LPDDR2 RAM and 4 GB eMMC flash memory. These modules have extra other input/output (I/O) interfaces plus to the Raspberry Pi-Platinen, Model A/B.
This text is machine translated.
Hints
Raspberry Pi guarantees the availability of CM3 and CM3 Lite at least until January 2023.
