Buy Raspberry Pi® PI500+DE Raspberry Pi® 500+ 16 GB 4 x 2.4 GHz Keyboard, LEDs

A white keyboard with RGB backlighting, displaying a spectrum of colors from left to right.

A slim, white mechanical keyboard with RGB backlighting. It features multiple ports including USB and Ethernet on the side.

A white keyboard on a dark surface with several keys removed, revealing switches underneath. A keycap puller is visible nearby.

A close-up of an NVMe SSD installed in a computer. The SSD label reads 'Kingston FURY' with visible interface and part of the motherboard.

A close-up of a computer keyboard with illuminated keys that change colors in a gradient, creating a vibrant and dynamic appearance.

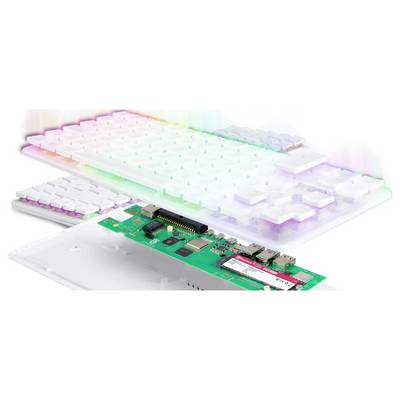

A keyboard disassembled to show its circuit board and internal components, with a colorful lighting effect on the keys.

1/6

Datasheet (PDF)

Fast track dispatch on Wed, 7 Oct

171 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 222.69 / piece)

€ 222.69

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Raspberry Pi® PI500+DE Complete PC 4x 2.4 GHz, 16 GB RAM, German keyboard layout

2.4 GHz quad-core 64-bit arm Cortex-A76 CPU with cryptographic extensions, 512 KB L2 cache per Kern and 2 MB shared L3 cache
16 GB LPDDR4X-4267 SDRAM
Internal 256 GB Raspberry Pi SSD
Support for M.2-NVMe SSDs up to form factor 2280
Mechanical keyboard with 84, 85 or 88 keys (depending on regional variant)
Gateon KS-33 blue low-profile switch
Dual band (2.4 GHz and 5.0 GHz) IEEE 802.11b/g/n/ac Wi-Fi
Bluetooth 5.0, BLE
Gigabit Ethernet
2× USB 3.0 connection and 1× USB 2.0 connection
Horizontal 40-pin GPIO header
2× Micro-HDMI® connection (supports up to 4Kp60)
H.265 (4Kp60 decoding)
OpenGL ES 3.0 graphics
SD card support: MicroSD card slot for operating system and data storage
Power supply 5 V DC via USB-C port

Technical specifications

Product type: SBC

Type: Raspberry Pi® 500+

SoC: Broadcom BCM2712

Processor: ARM Cortex-A76

Processor cores (No.): 4 x

GPU: Broadcom Video Core VII

: 16 GB

Clock speed: 2.4 GHz

Memory type: DDR4
SRAM

Operating system (Version): Raspbian

Memory capacity: 256 GB

Internal ports: GPIO (40-pin)

External ports: USB-C® (current)
USB 2.0
2x USB 3.0
2x HDMI™
LAN (10/100/1000)
micro SD

Wi-Fi: b/g/n/ac

Bluetooth: 5.0

Power supply (LOV): via PSU

Output voltage: 5 V DC

Output current: 5 A

Content: Keyboard
LEDs

Length: 123 mm

Width: 312 mm

Height: 35 mm

Documents & Downloads

Datasheet

Datasheet 3465747 Raspberry Pi® PI500+DE Raspberry Pi® 500+ 16 GB 4 x 2.4 GHz Keyboard, LEDs

User & Safety Instructions

User & Safety Instructions 3465747 Raspberry Pi® PI500+DE Raspberry Pi® 500+ 16 GB 4 x 2.4 GHz Keyboard, LEDs

Description

Slim form, remarkable function
The Raspberry Pi 500+ combines the power of a quad-core 64-bit arm processor and the RP1 I/O controller 5 in an ergonomic and tactile mechanical keyboard and combines uncompromising performance with 16 GB RAM and 256 GB memory for a truly first-class desktop computer experience.

Easy to click
The Raspberry Pi 500+ is equipped with flat Gateon KS-33 blue switches that offer long lead-out times and quick operation to ensure a comfortable and smooth typing experience. Do you want a more individual look? A key cap opener is included in the delivery, with which you can replace the standard keys.

256 GB memory
The Raspberry Pi 500+ is equipped with a 256 GB Raspberry Pi SSD that ensures fast start-up times and reliable data transfer. With the accompanying tool for opening the casing you can replace the SSD, in order to increase the storage capacity.

The lighting is fantastic
The Raspberry Pi 500+ has bright, clear LEDs placed under mechanical switches. Change between the pre-set patterns or program the LEDs individually for a really individual look

This text is machine translated.
