Raspberry Pi® SC1169 Development board 1 pc(s) Compatible with (development kits): Raspberry Pi® Pico
EAN:
Part number:
Item no:
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details
Raspberry Pi® Radio Modules 2
- Wi-Fi 4 (802.11n), single band (2.4 GHz) and Bluetooth 5.2-support
- Bluetooth Classic and Bluetooth Low Energy (LE)
- Supports up to 100 m (class 1) and 10 m (class 2)
- Full software compatibility with pico W and pico 2 W SDK
Technical specifications
- Product type
Development board
- Interfaces
Wi-Fi
- Suitable for
Raspberry Pi®
- Tool type
TXRX module
- Compatible with
Raspberry Pi® Pico
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3439065 Raspberry Pi® SC1169 Development board 1 pc(s) Compatible with (development kits): Raspberry Pi® Pico
Description

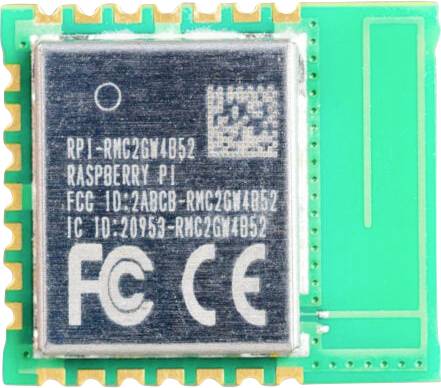

The Raspberry Pi Radio Module 2 is a compact radio module specially developed for OEM applications. It integrates the proven wireless technology from the Raspberry Pi pico W and pico 2 W and offers an easy way to integrate wireless connections into products with Raspberry Pi microcontrollers such as the RP2040 or RP235x. The enclosed design allows easy mounting on printed circuit boards in series production.
This text is machine translated.
This text is machine translated.
Features
- Single GPIO Expander: Three host controlled GPIOs for additional I/O functions
- The low-pin gSPI host interface enables simplified integration with minimal I/O requirements
- The SISO1 configuration supports efficient single antenna wireless performance
- Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate)
- Operating temperature from -30 °C to +70 °C
- IEEE Power Save PM1 DTIM1 Average Rate 1: 1.19 mA
- Active reception rate MCS7 (at -50 dBm): 43 mA
- Active transmission rate MCS7 (at 16 dBm): 271 mA
Hints
Raspberry Pi Radio Module 2 will remain in production at least until January 2036.
