Raspberry Pi® SC2357 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 785.71 / piece)
€ 785.71
plus VAT.
Highlights & Details

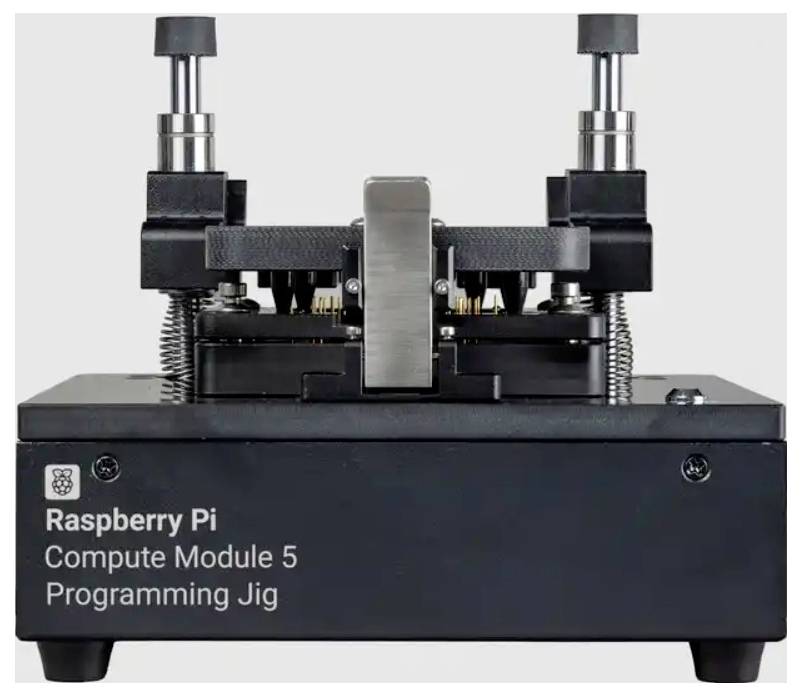

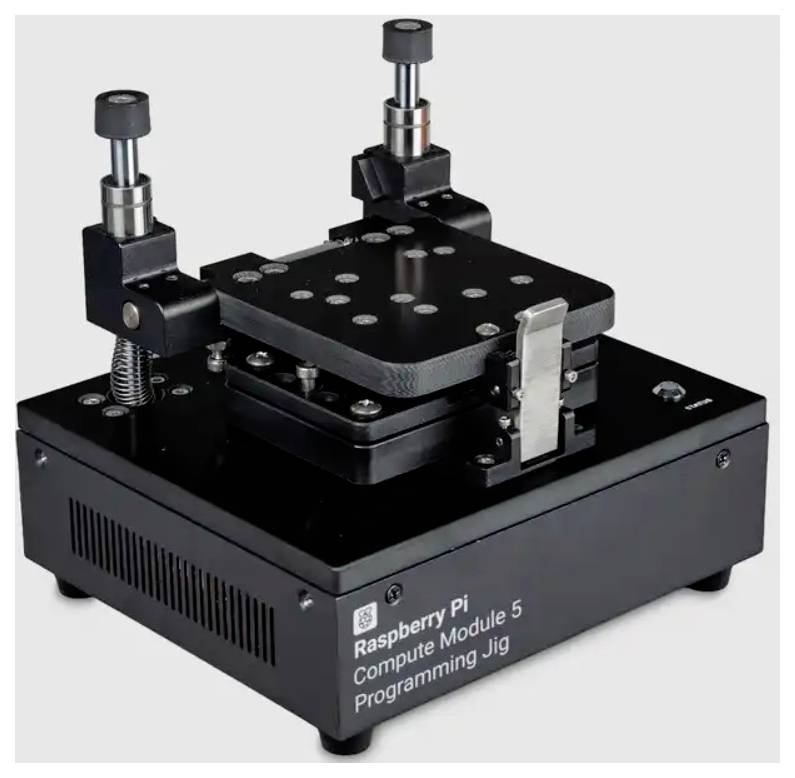

Raspberry Pi Compute Module 5 Programming device
- 1 × Delivery head
- Pogo pin interface
- Mechanical clamping mechanism
- LED status indicators
- Dual network connection
- Supports automated deployment with RPI-sb provider

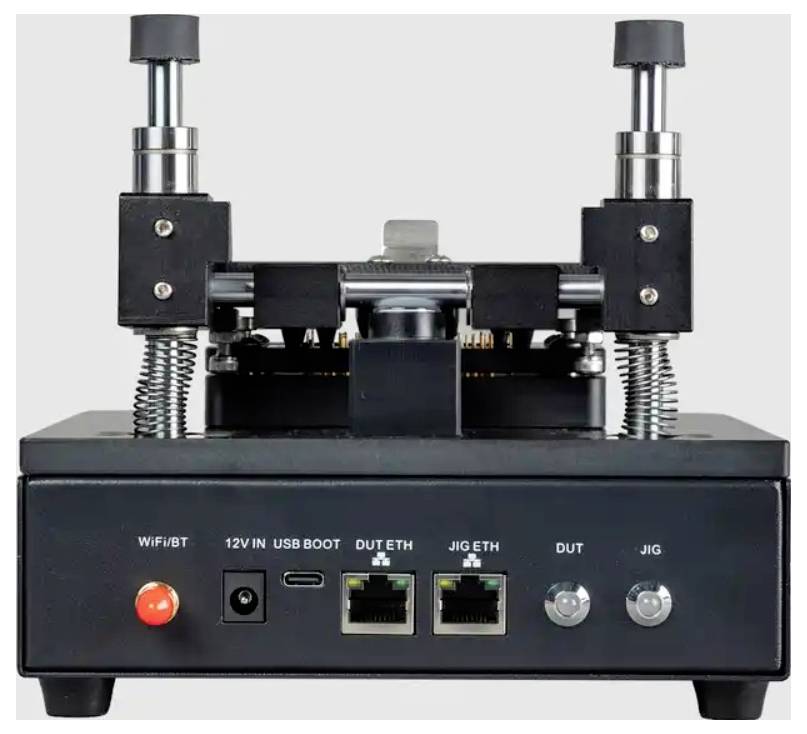

- JIG ETH - Ethernet (10/100/1000)
- DUT ETH - Ethernet (10/100/1000)
- USB-C input for writing the operating system of the Jigs
- 12 V power supply (power supply included)
- Compatible with Raspberry Pi Compute Module 5 only
Technical specifications
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3815342 Raspberry Pi® SC2357 1 pc(s)
Description

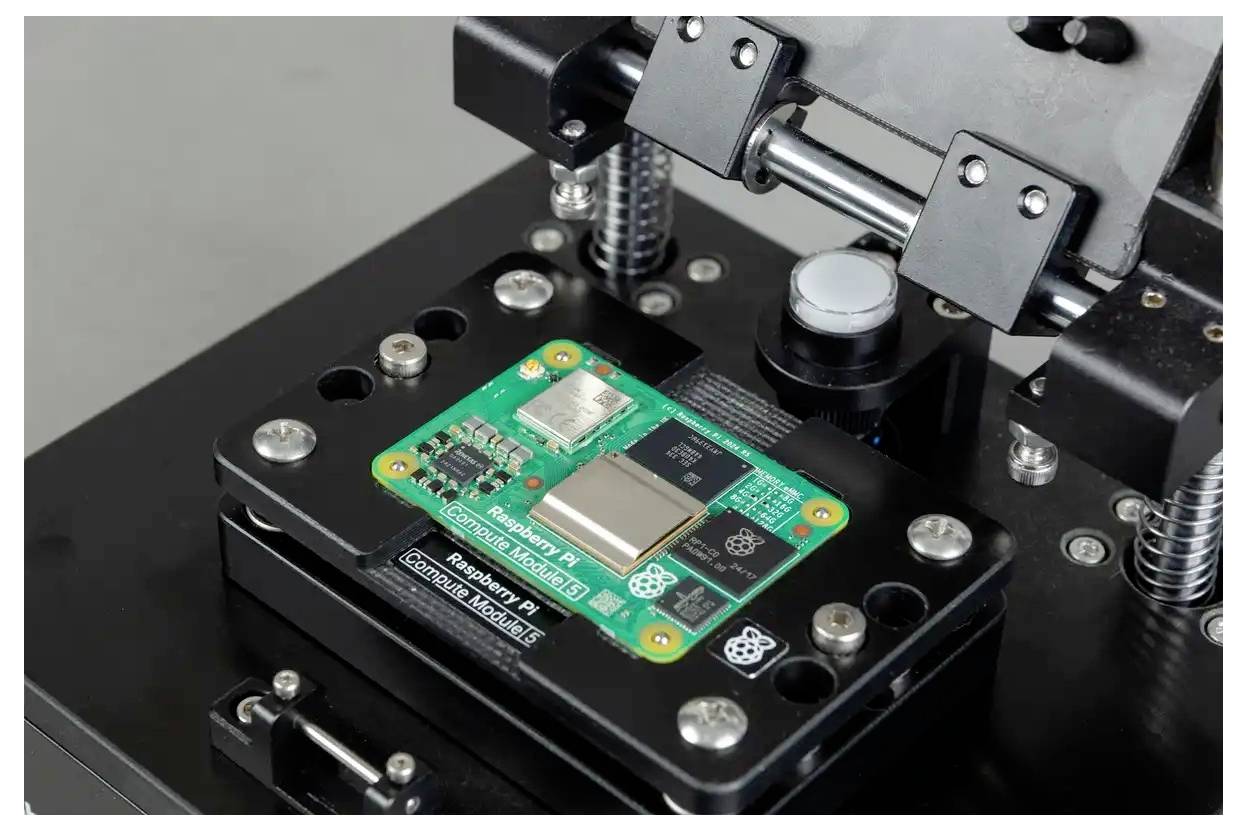

The Compute Module 5 Programming Jig is a single head provisioning system that allows the Compute Module 5 to be expanded directly from the unpopulated board to a production-ready device – without the need for a separate IO card. Developers can automate provisioning workflow with RPI-sb provider. This enables the Jig to perform all the usual configuration steps, including Secure Boot, full disk encryption, and operating system installation. The connection to the provisioning network is via Ethernet or Wi-Fi®. A second Ethernet-port enables the accelerated software transmission. Pogo pins connect directly to the module without the need for a separate carrier board.
