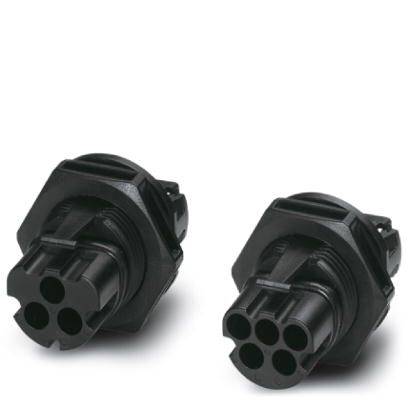

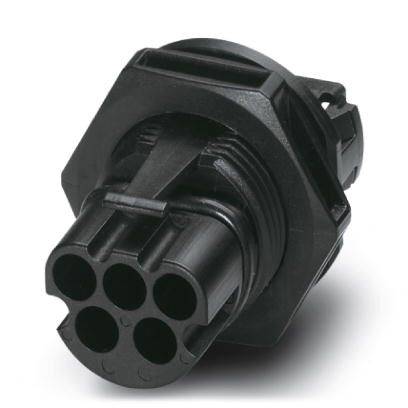

Rear panel connector 1409206 PRC 5-FT25-MC Black Phoenix Contact Content: 50 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material contact carrier: PPE
- Material seal: EPDM
- Material O-ring: Silicone
- Screw connection material: PPE
- Wire stripping length: 12 mm
- Locking type: Locking mechanism
- Mating cycles 50
- Insertion force 40 N ±10 N.
- Tightening torque: 2.5 Nm ±0.1 Nm (tightening torque nut)
- Stripping length of the sheath: 12 mm
- Stripping length of the single wire 12 mm
- Spanner size 32 mm
- Type
PRC 5-FT25-MC
- Product type
DIN connector
- Total no. of pins
5
IP66
IP68
IP69K
IP65
- Connection
Crimp
- Nominal voltage
690 V AC
- Factory colour
Black
- Rated voltage
690 V
- Test current
35 A
- Case material
PPE
- Manufacturer part #
1409206
- Content
50 pc(s)
- Number of pins
5

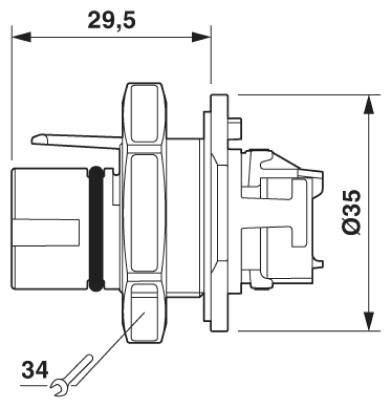

- Width
35 mm
- Height
46.6 mm
- Length
35 mm
- Connector type
Pin
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209166 Rear panel connector 1409206 PRC 5-FT25-MC Black Phoenix Contact Content: 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2209166 Rear panel connector 1409206 PRC 5-FT25-MC Black Phoenix Contact Content: 50 pc(s)
Description
Round connector (on the device side), rear panel connector, material housing: PPE, color: Black, number of pins: 5, rated voltage: 690 V AC, rated current: 35 A, connection type: Crimp connection, contact type: Pin
