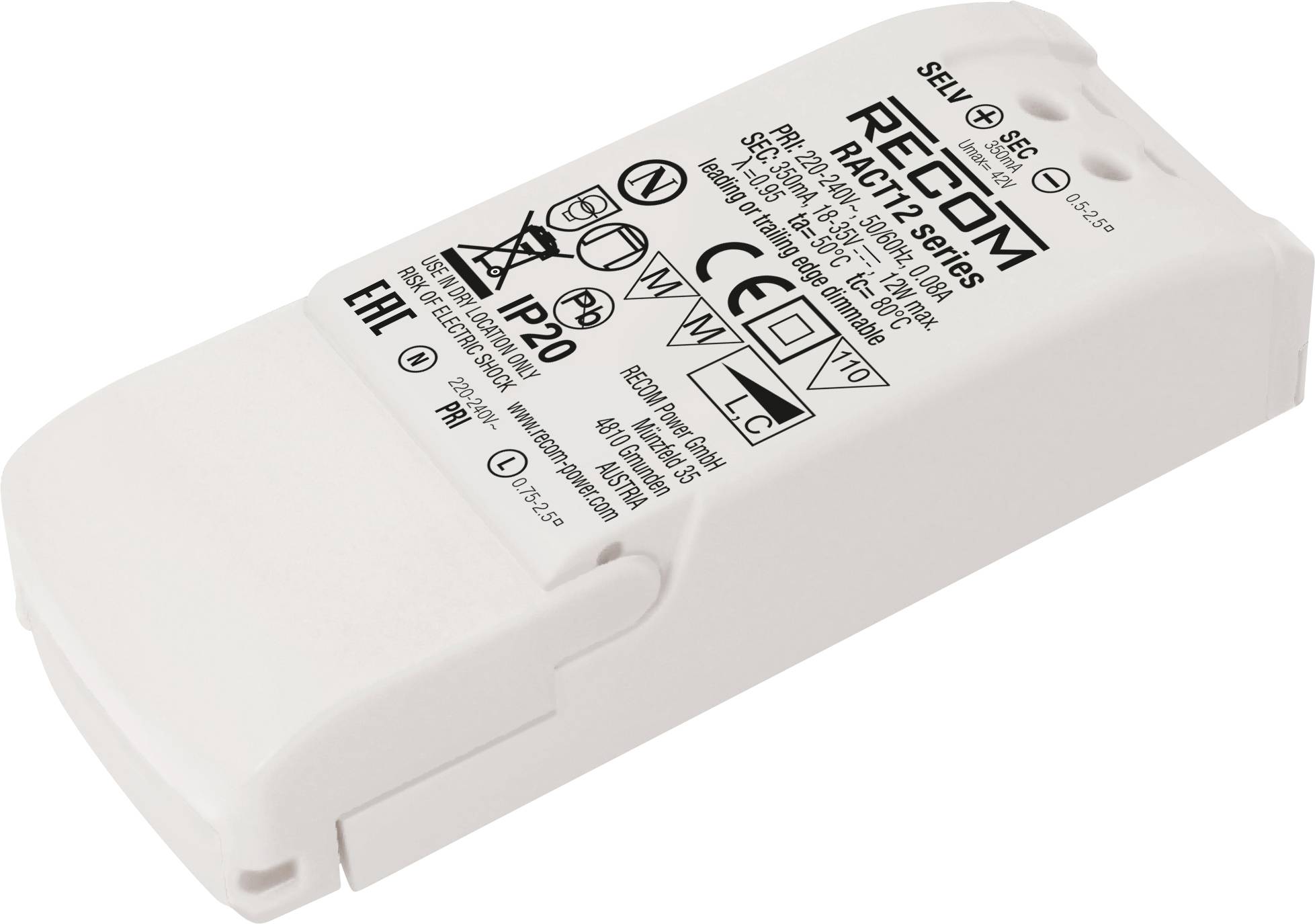

RECOM LED driver 12 W 700 mA 9 - 18 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Highlights & Details
12W AC/DC LED power supply 'LIGHTLINE' 3.75kV reg
- 9 - 18 V DC
- 700 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 109 x 40 x 22 mm
- Output voltage (max.)
18 V DC
- Output voltage (min.)
9 V DC
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Max. power
12 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Power range
12 W (max)
- Width
40 mm
- Height
22 mm
- Length
109 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2337918 RECOM LED driver 12 W 700 mA 9 - 18 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2337918 RECOM LED driver 12 W 700 mA 9 - 18 V DC 1 pc(s)
Warranty Terms
Warranty Terms 2337918 RECOM LED driver 12 W 700 mA 9 - 18 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
