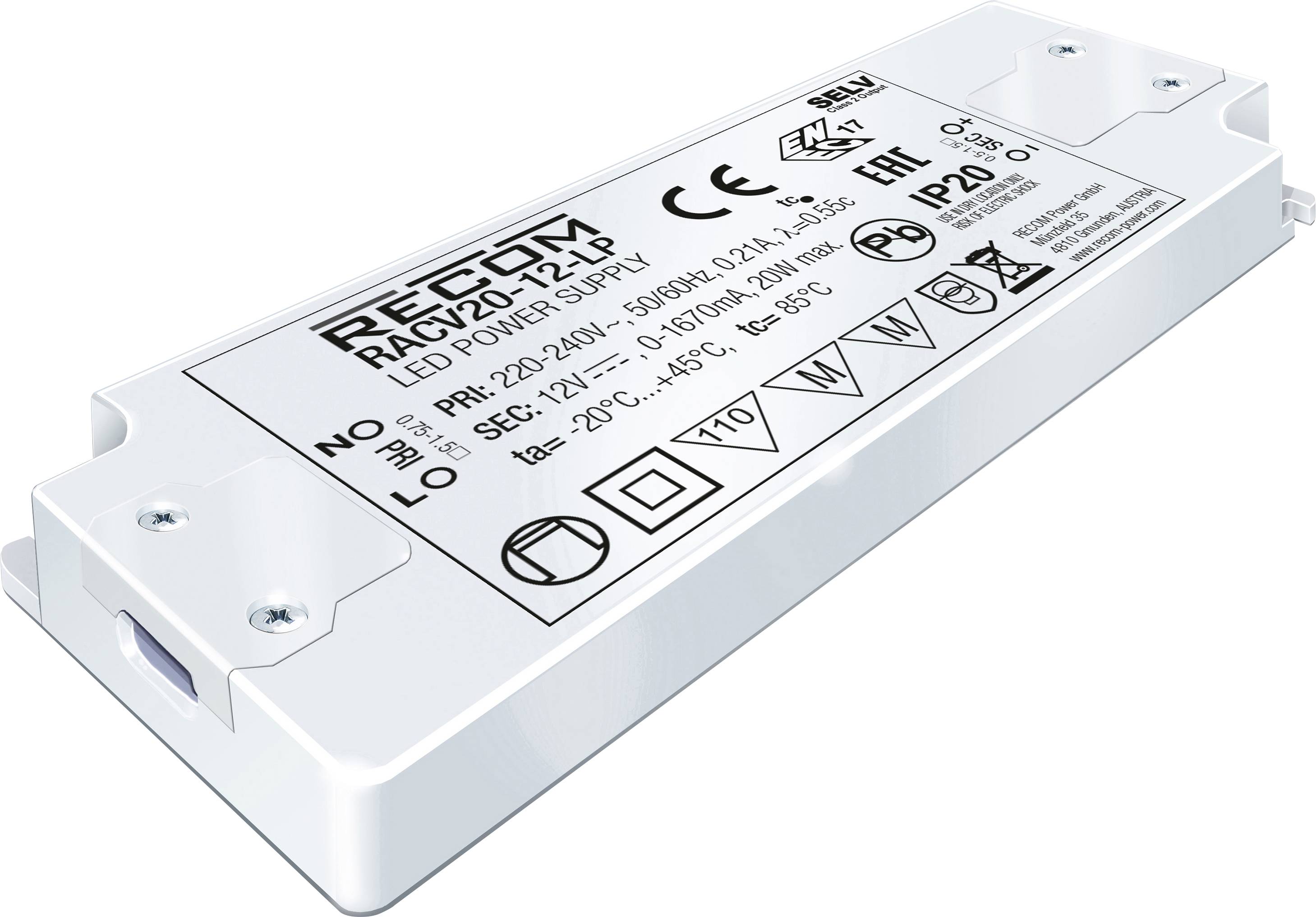

RECOM LED driver 20 W 0 - 1670 mA 12 V DC adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
20W AC/DC LED power supply 'LIGHTLINE' 3.75kV reg
- 12 V DC
- 0 - 1670 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 128 x 50 x 13 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
1670 mA
- Output current (max.) - rounded
1.67 A
- LED driver features
adjustable
- Max. power
20 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Power range
20 W (max)
- Width
50 mm
- Height
13 mm
- Length
128 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2337900 RECOM LED driver 20 W 0 - 1670 mA 12 V DC adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2337900 RECOM LED driver 20 W 0 - 1670 mA 12 V DC adjustable 1 pc(s)
Warranty Terms
Warranty Terms 2337900 RECOM LED driver 20 W 0 - 1670 mA 12 V DC adjustable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
