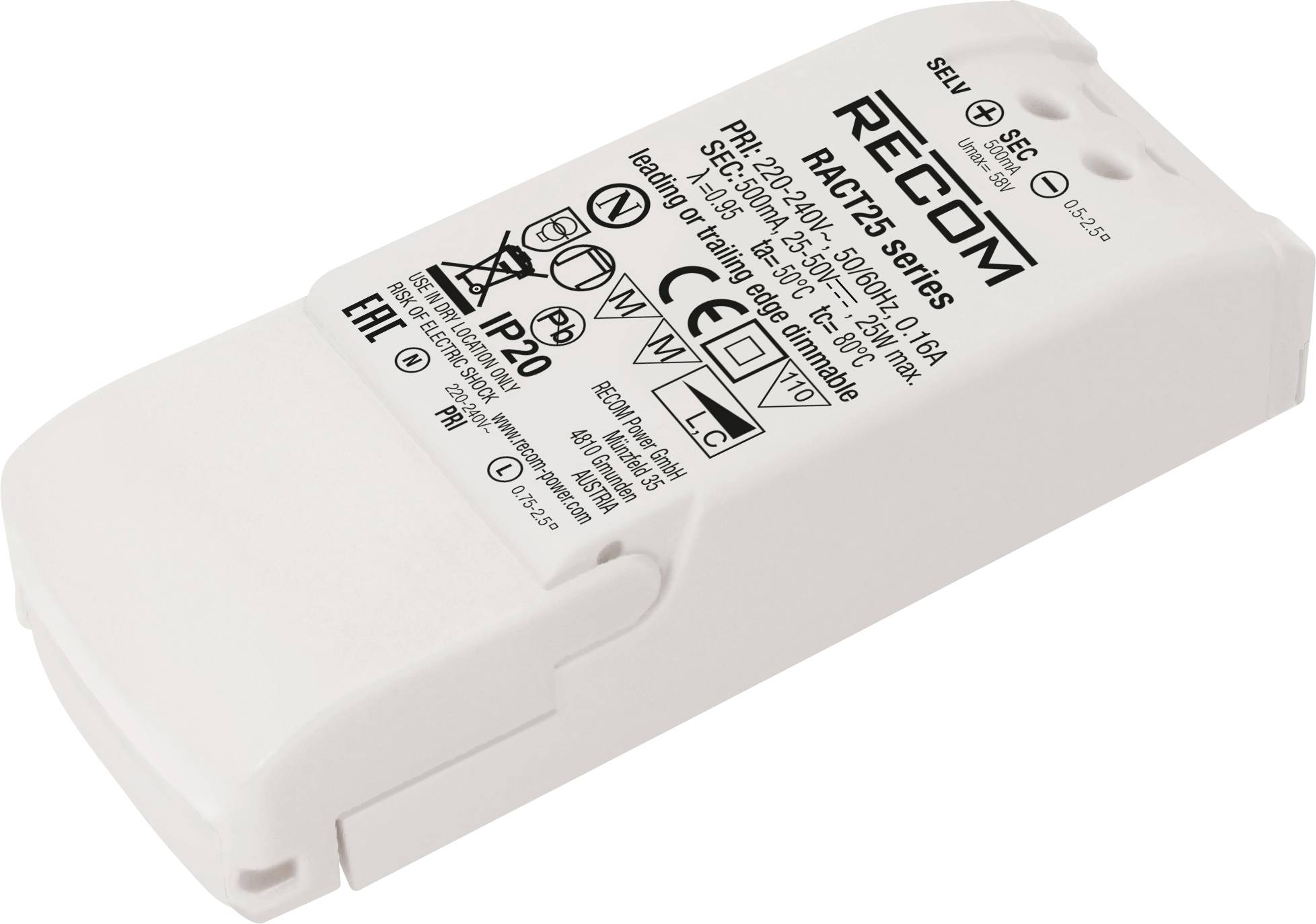

RECOM LED driver 25 W 1050 mA 12 - 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
25W AC/DC LED power supply 'LIGHTLINE' 3.75kV reg
- 12 - 24 V DC
- 1050 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 120 x 45 x 28 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
12 V DC
- Max. output current
1050 mA
- Output current (max.) - rounded
1.05 A
- Max. power
25 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Power range
25 W (max)
- Width
45 mm
- Height
28 mm
- Length
120 mm
Documents & Downloads
Datasheet
Datasheet 2337891 RECOM LED driver 25 W 1050 mA 12 - 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2337891 RECOM LED driver 25 W 1050 mA 12 - 24 V DC 1 pc(s)
Warranty Terms
Warranty Terms 2337891 RECOM LED driver 25 W 1050 mA 12 - 24 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
