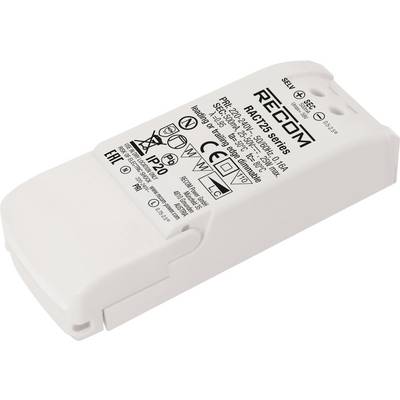

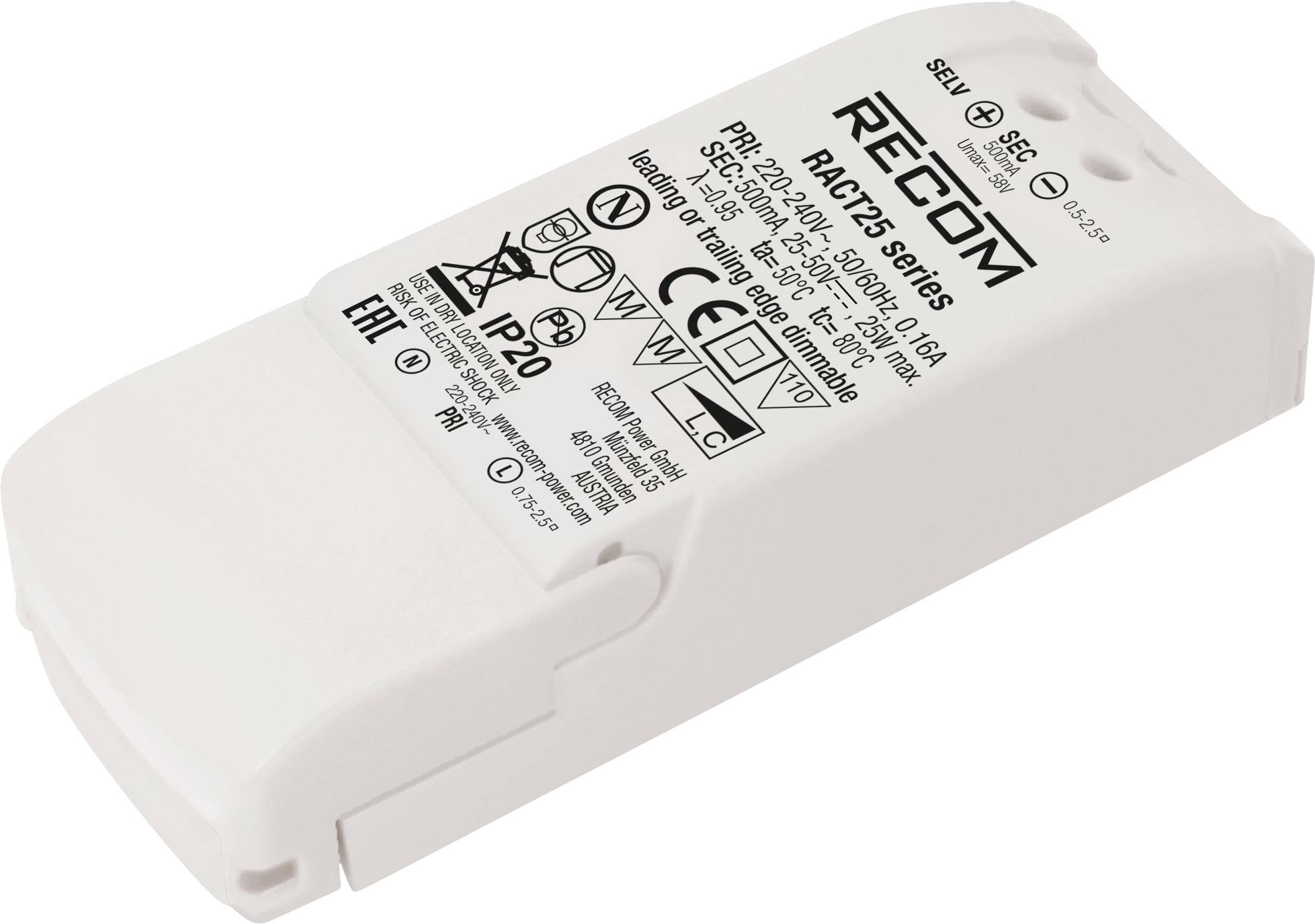

RECOM LED driver 25 W 500 mA 25 - 50 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
25W AC/DC LED power supply 'LIGHTLINE' 3.75kV reg
- 25 - 50 V DC
- 500 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 120 x 45 x 28 mm
- Output voltage (max.)
50 V DC
- Output voltage (min.)
25 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Max. power
25 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Power range
25 W (max)
- Width
45 mm
- Height
28 mm
- Length
120 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2337921 RECOM LED driver 25 W 500 mA 25 - 50 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2337921 RECOM LED driver 25 W 500 mA 25 - 50 V DC 1 pc(s)
Warranty Terms
Warranty Terms 2337921 RECOM LED driver 25 W 500 mA 25 - 50 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
