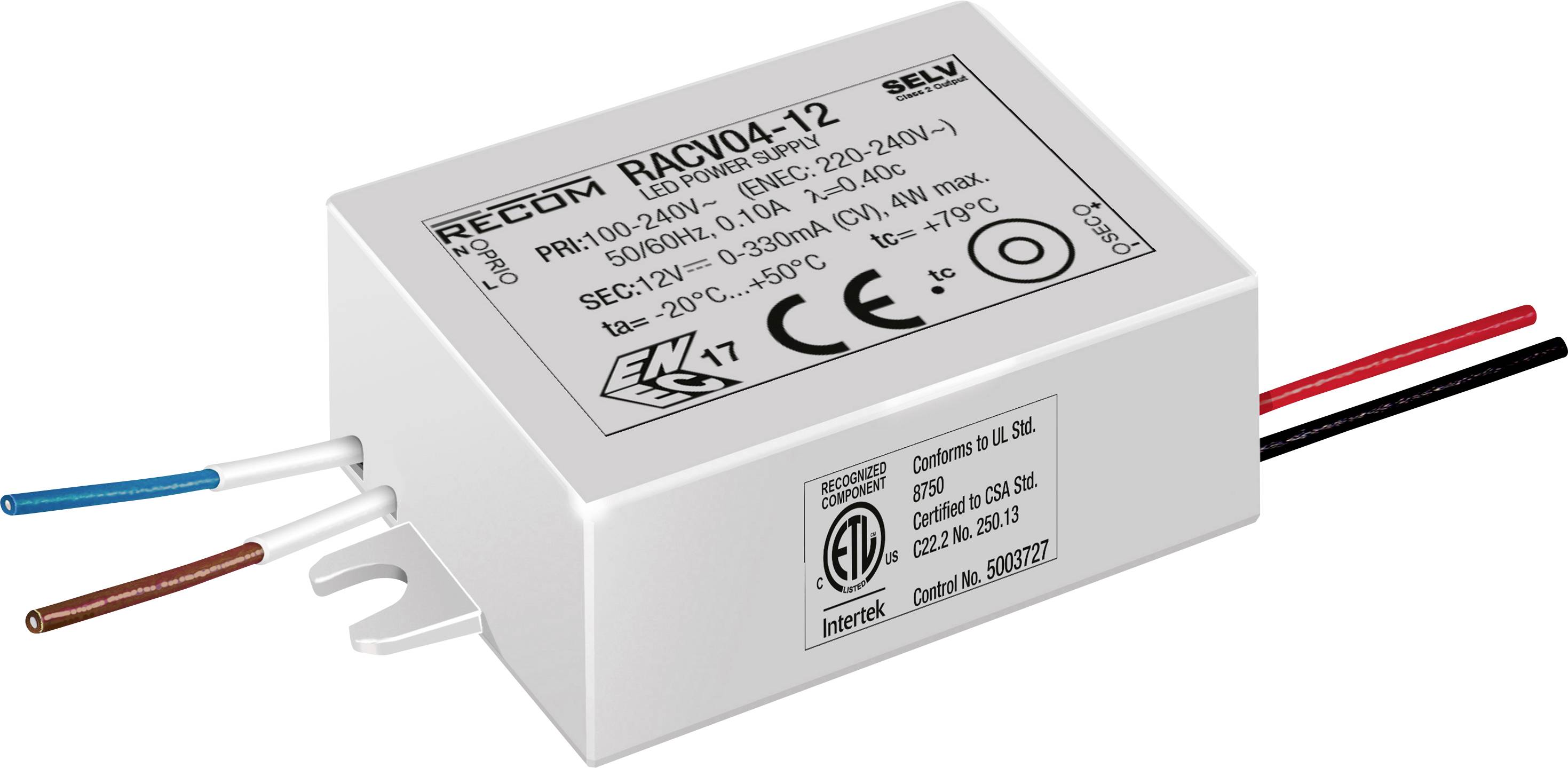

RECOM LED driver 4 W 0 - 330 mA 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
4W AC/DC LED power supply 'LIGHTLINE' 3.75kV reg
- 12 V DC
- 0 - 330 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 38 x 27 x 21 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
330 mA
- Output current (max.) - rounded
330 mA
- Max. power
4 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
264 V
- Min. input voltage
90 V
- Power range
4 W (max)
- Width
27 mm
- Height
21 mm
- Length
38 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2337750 RECOM LED driver 4 W 0 - 330 mA 12 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2337750 RECOM LED driver 4 W 0 - 330 mA 12 V DC 1 pc(s)
Warranty Terms
Warranty Terms 2337750 RECOM LED driver 4 W 0 - 330 mA 12 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
