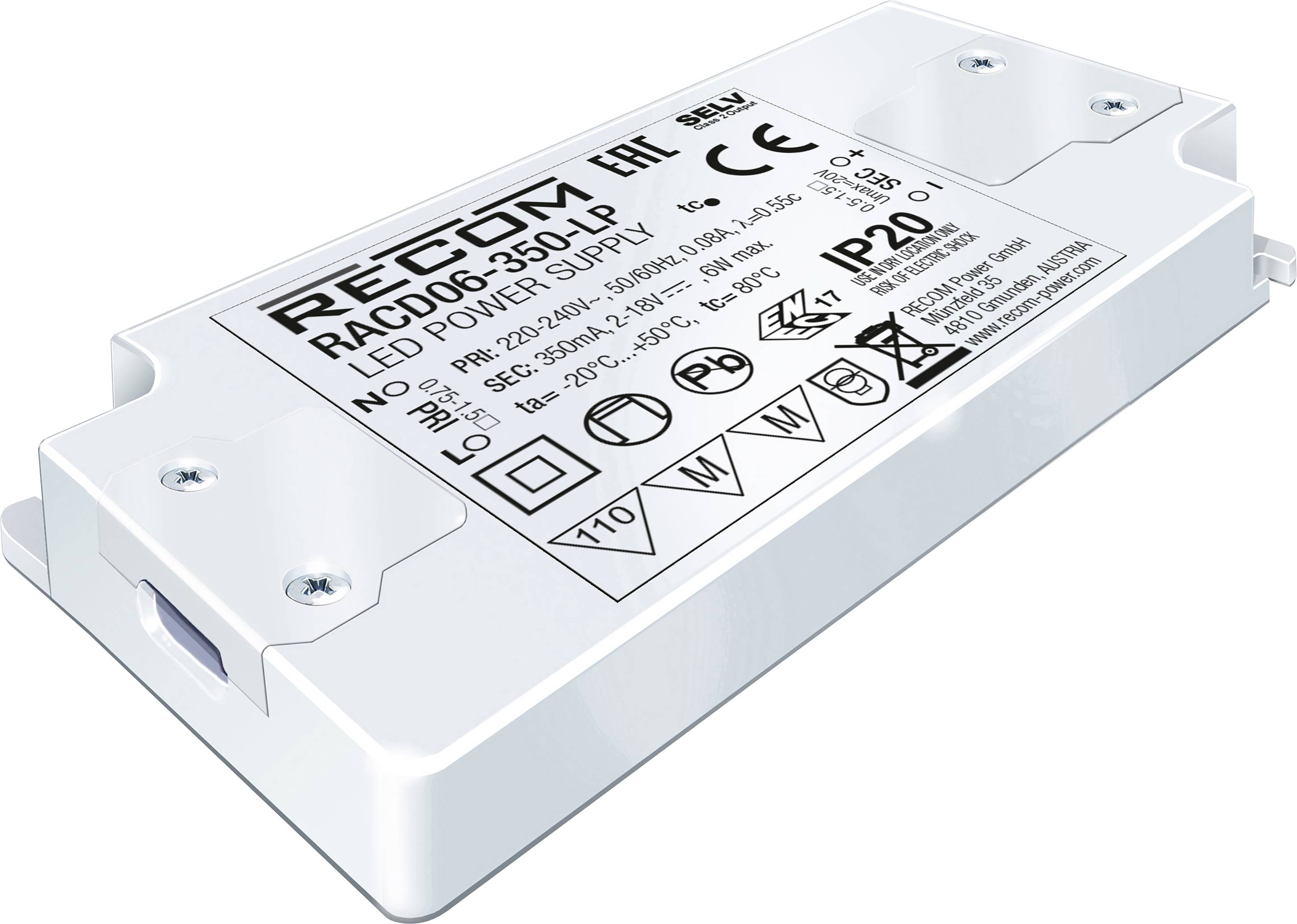

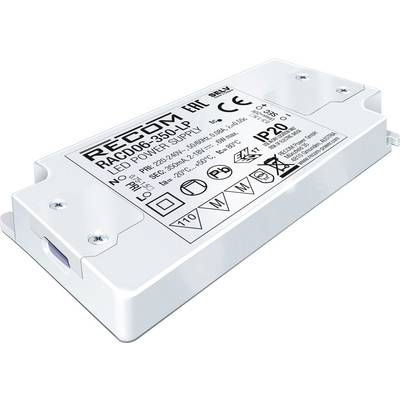

RECOM LED driver 6 W 350 mA 2 - 18 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
6W AC/DC LED power supply 'LIGHTLINE' 3.75kV reg
- 2 - 18 V DC
- 350 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 98 x 46 x 11 mm
- Output voltage (max.)
18 V DC
- Output voltage (min.)
2 V DC
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Max. power
6 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Power range
6 W (max)
- Width
46 mm
- Height
11 mm
- Length
98 mm
Documents & Downloads
Datasheet
Datasheet 2337912 RECOM LED driver 6 W 350 mA 2 - 18 V DC
User & Safety Instructions
User & Safety Instructions 2337912 RECOM LED driver 6 W 350 mA 2 - 18 V DC
Warranty Terms
Warranty Terms 2337912 RECOM LED driver 6 W 350 mA 2 - 18 V DC
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
