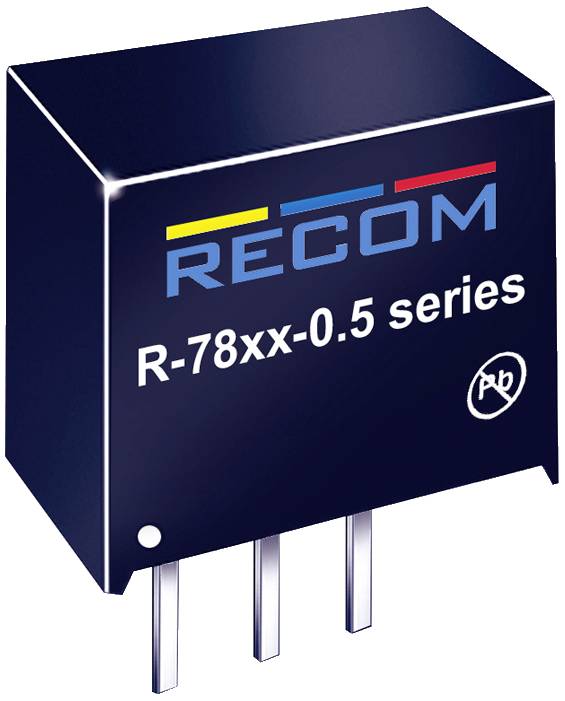

RECOM R-781.8-0.5 DC/DC converter 1.80 V 0.5 A 0.9 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 6800 µF
- Remaining ripple 30 MVP-p
- Application: ITE, Industry
- Casing: SIP3
- Product type
DC/DC converter
- Type
R-781.8-0.5
- Min. input voltage
4.75 V DC
- Input voltage (max.)
32 V DC
- Output voltages
1.80 V
- Max. output current
0.5 A
- Output current (max.) - rounded
500 mA
- Efficiency (max.)
82 %
0.9 W
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+71 °C
- Dim
(L x W x H) 11.50 x 7.55 x 10.20 mm
- Height
10.20 mm
- Length
11.50 mm
- Width
7.55 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
