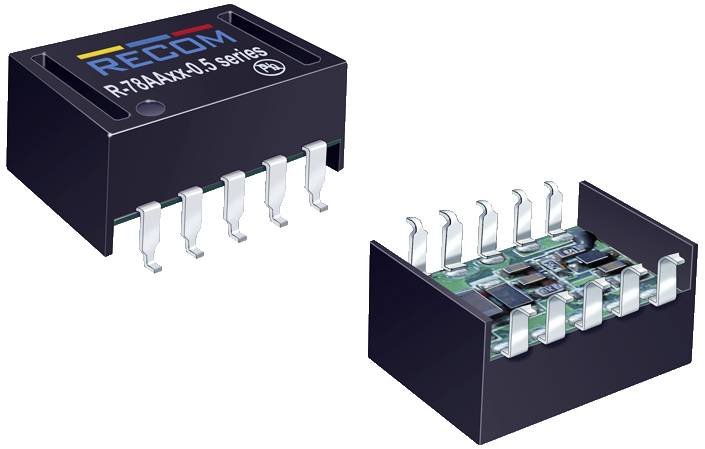

RECOM R-78AA5.0-0.5SMD-R DC/DC converter 5 V 0.5 A 2.5 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 6800 µF
- Remaining ripple 30 MVP-p
- Application: ITE, Industry
- SMD casing
- Product type
DC/DC converter
- Type
R-78AA5.0-0.5SMD-R
- Min. input voltage
6.5 V DC
- Input voltage (max.)
32 V DC
- Output voltages
5 V
- Max. output current
0.5 A
- Output current (max.) - rounded
500 mA
- Efficiency (max.)
94 %
2.5 W
- Connection
SMD
- PSU features
Adjustable voltage output
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+71 °C
- Dim
(L x W x H) 15.30 x 9.60 x 8.80 mm
- Height
8.80 mm
- Length
15.30 mm
- Width
9.60 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
