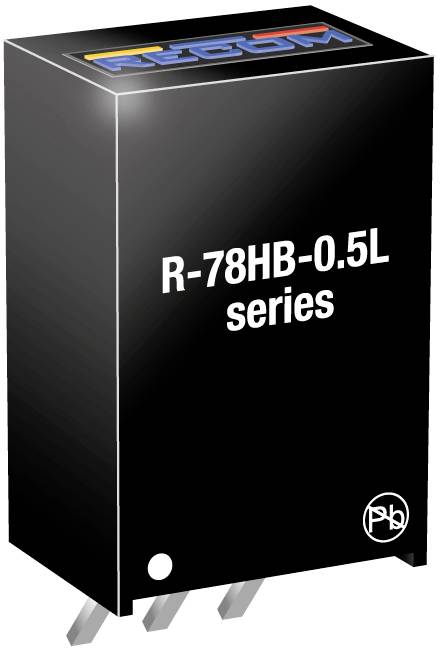

RECOM R-78HB12-0.5L DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 500 mA No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter (print)
- Type
R-78HB12-0.5L
- Nominal voltage
24 V DC
- Min. input voltage
17 V
- Input voltage (max.)
72 V
- No. of outputs
1 x
- Output voltages
12 V DC
-12 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Enclosure
SIP 3
- Dim
(L x W x H) 11.5 x 8.5 x 17.5 mm
- Height
17.5 mm
- Length
11.5 mm
- Width
8.5 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Content
1 pc(s)
