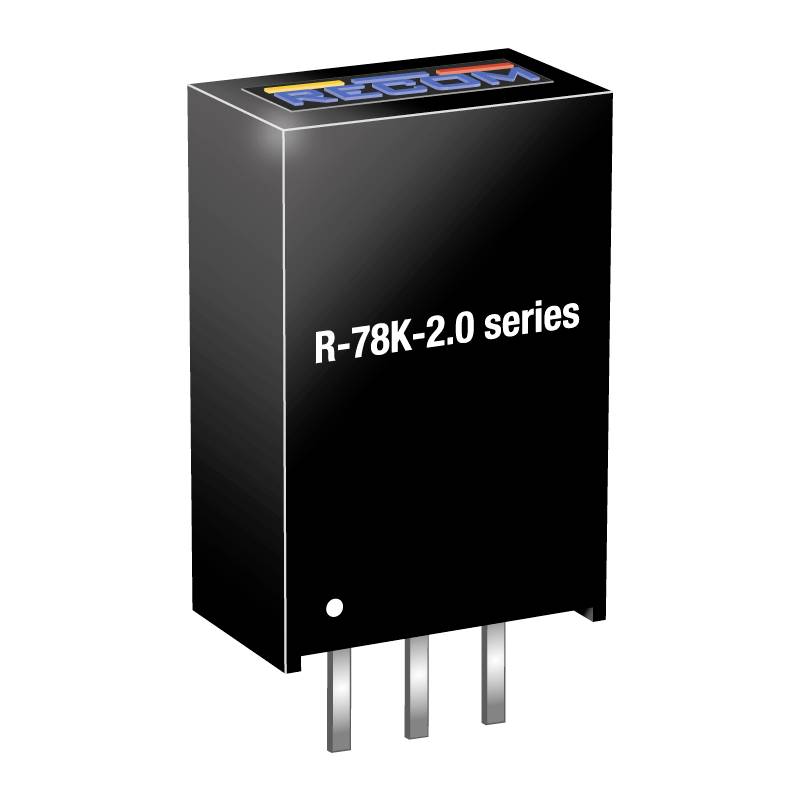

RECOM R-78K12-2.0 DC/DC converter 12 V 2 A 24 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Remaining ripple 170 MVP-p
- Application: ITE, Industry
- Casing: SIP3
- Product type
DC/DC converter
- Type
R-78K12-2.0
- Min. input voltage
4.5 V DC
- Input voltage (max.)
36 V DC
- Output voltages
12 V
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Efficiency (max.)
96 %
24 W
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+90 °C
- Dim
(L x W x H) 11.50 x 8.50 x 17.50 mm
- Height
17.50 mm
- Length
11.50 mm
- Width
8.50 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
