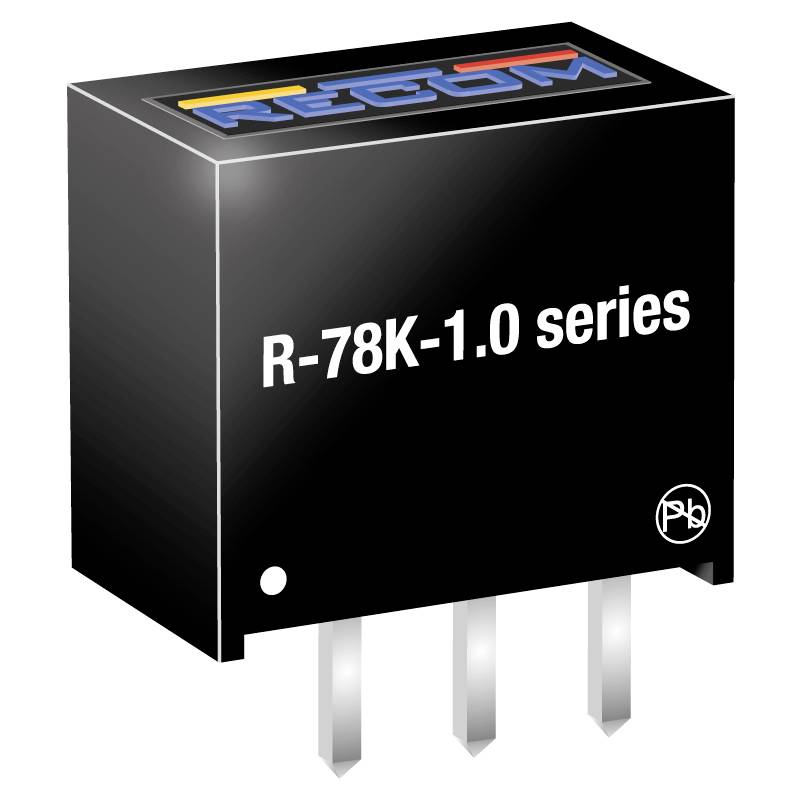

RECOM R-78K15-1.0 DC/DC converter 15 V 1 A 15 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Remaining ripple 100 MVP-p
- Application: ITE, Industry
- Casing: SIP3
- Product type
DC/DC converter
- Type
R-78K15-1.0
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- Output voltages
15 V
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
94 %
15 W
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+90 °C
- Dim
(L x W x H) 11.50 x 7.55 x 10.20 mm
- Height
10.20 mm
- Length
11.50 mm
- Width
7.55 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
