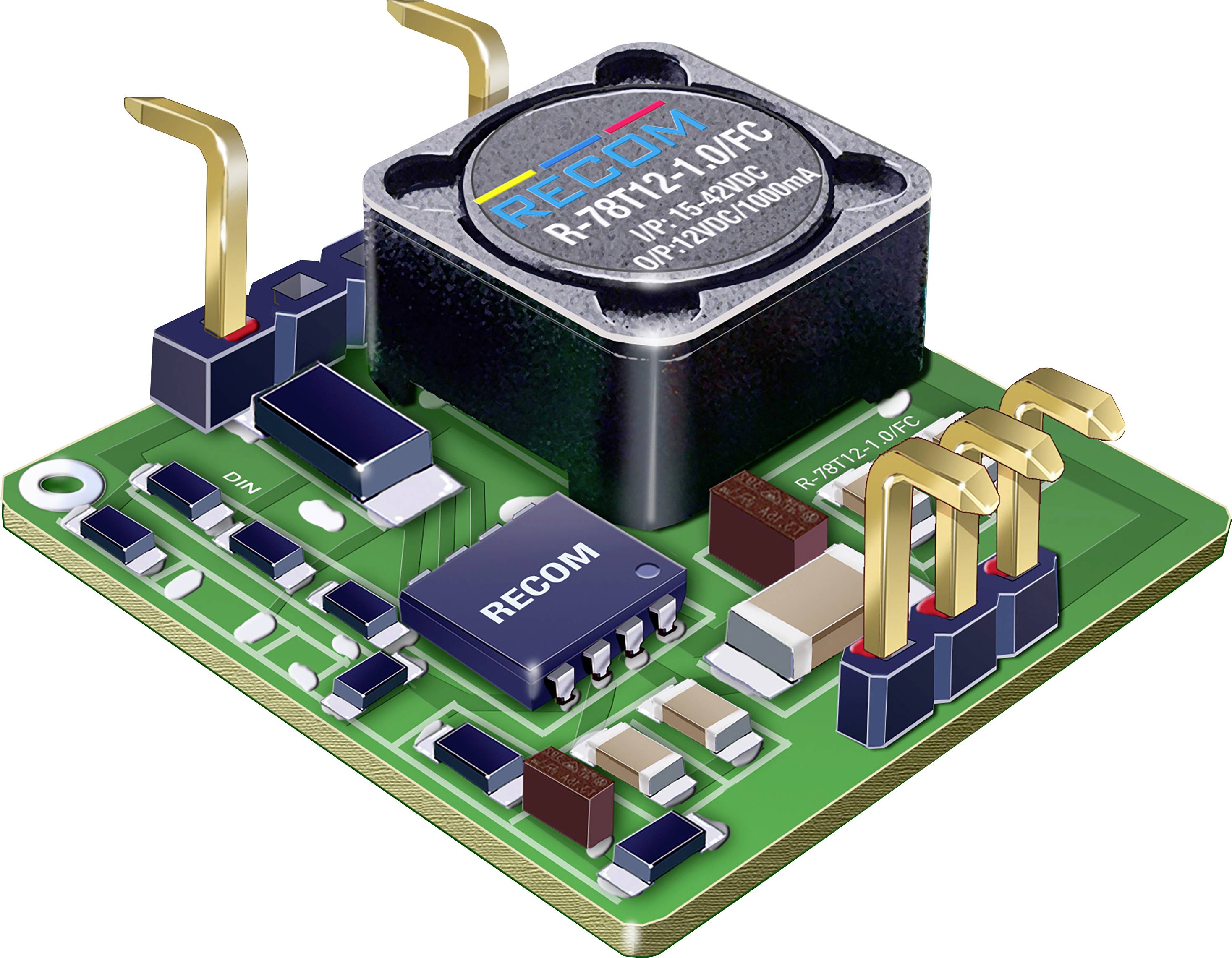

RECOM R-78T12-1.0/FC-R DC/DC converter 24 V DC 12 V DC 1 A No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
R-78T12-1.0/FC-R
- Nominal voltage
24 V DC
- Min. input voltage
15 V
- Input voltage (max.)
42
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Dim
(L x W x H) 23 x 29.4 x 8 mm
- Height
8 mm
- Length
23 mm
- Width
29.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Content
1 pc(s)
