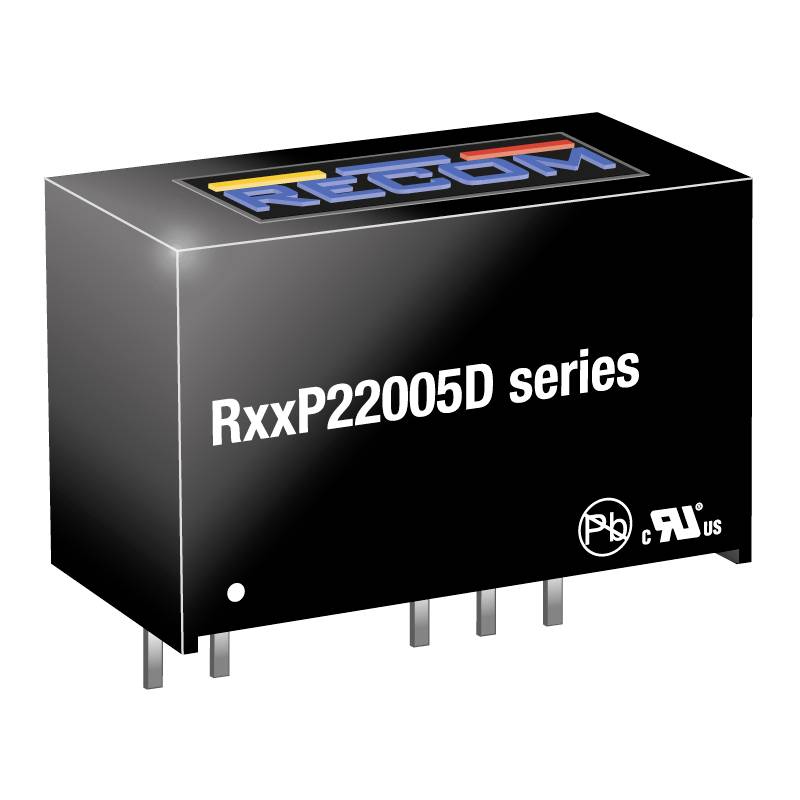

RECOM R05P22005D DC/DC converter 5 V -5 V, 20 V -0.2 A 2 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 680 µF
- Remaining ripple 200 MVP-p
- Application: ITE, Industry, Medicine
- Casing: SIP7
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
R05P22005D
- Nominal voltage
5 V
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
2 x
- Output voltages
-5 V
20 V
- Max. output current
-0.2 A
- Efficiency (max.)
82 %
2 W
- Insulation voltage
6.400 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+90 °C
- Dim
(L x W x H) 19.50 x 9.80 x 12.50 mm
- Height
12.50 mm
- Length
19.50 mm
- Width
9.80 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
