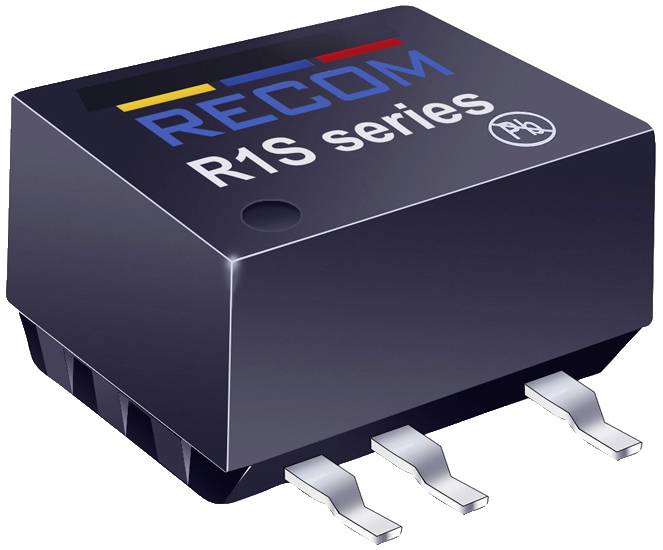

RECOM R1S-0512 DC/DC converter 5 V 12 V 0.084 A 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 470 µF
- Remaining ripple 100 MVP-p
- Application: ITE, Industry, Medicine
- SMD casing
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
R1S-0512
- Nominal voltage
5 V
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
0.084 A
- Output current (max.) - rounded
84 mA
- Efficiency (max.)
80 %
1 W
- Insulation voltage
1.000 V
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+100 °C
- Dim
(L x W x H) 12.75 x 10.70 x 6.70 mm
- Height
6.70 mm
- Length
12.75 mm
- Width
10.70 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
