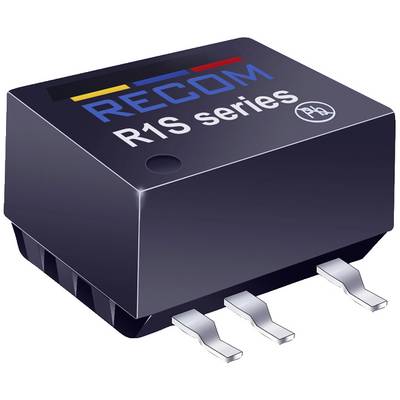

RECOM R1S-3.33.3-R DC/DC converter 3.3 V 3.30 V 0.303 A 1 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
42 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€
Technical specifications
- Capacitive load max. 2200 µF
- Remaining ripple 100 MVP-p
- Application: ITE, Industry, Medicine
- SMD casing
- Input voltage ratio 1:1
- Type
R1S-3.33.3-R
- Nominal voltage
3.3 V
- Min. input voltage
2.97 V DC
- Input voltage (max.)
3.63 V DC
- No. of outputs
1 x
- Output voltages
3.30 V
- Max. output current
0.303 A
- Output current (max.) - rounded
303 mA
- Efficiency (max.)
75 %
1 W
- Insulation voltage
1.000 V
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+100 °C
- Dim
(L x W x H) 12.75 x 10.70 x 6.70 mm
- Height
6.70 mm
- Length
12.75 mm
- Width
10.70 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Product type
DC/DC converter
