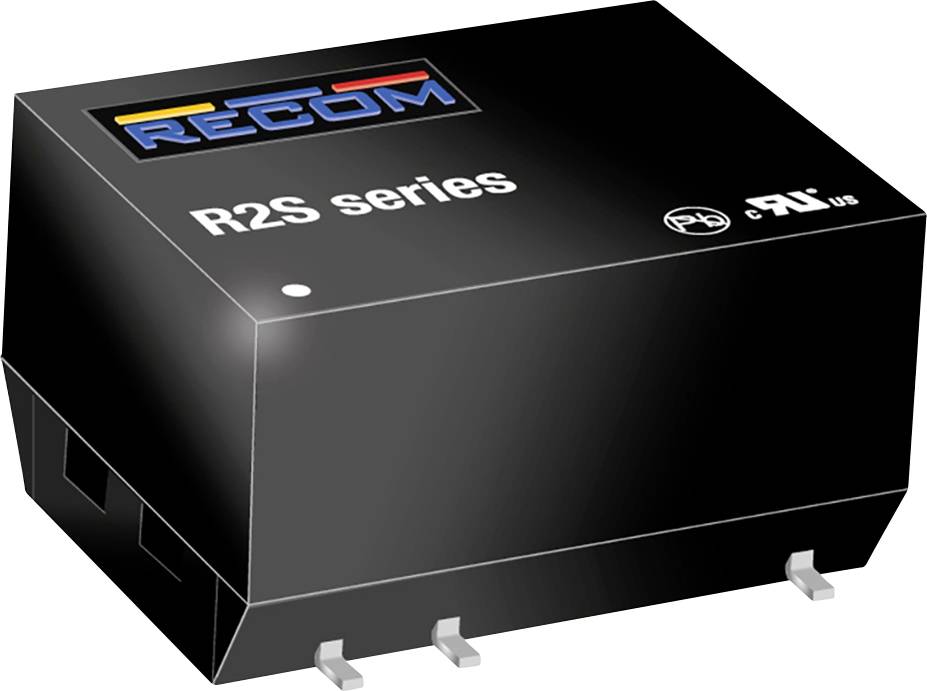

RECOM R2S-2405 DC/DC converter (SMD) 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
R2S-2405
- Min. input voltage
21.6 V
- Input voltage (max.)
26.4
- No. of outputs
1 x
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
2 W
- Insulation voltage
1000 V
- Enclosure
SMD 5
- Dim
(L x W x H) 12.75 x 10.7 x 8.7 mm
- Height
8.7 mm
- Length
12.75 mm
- Width
10.7 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V
- Output voltage (min.)
5 V
- Content
1 pc(s)
