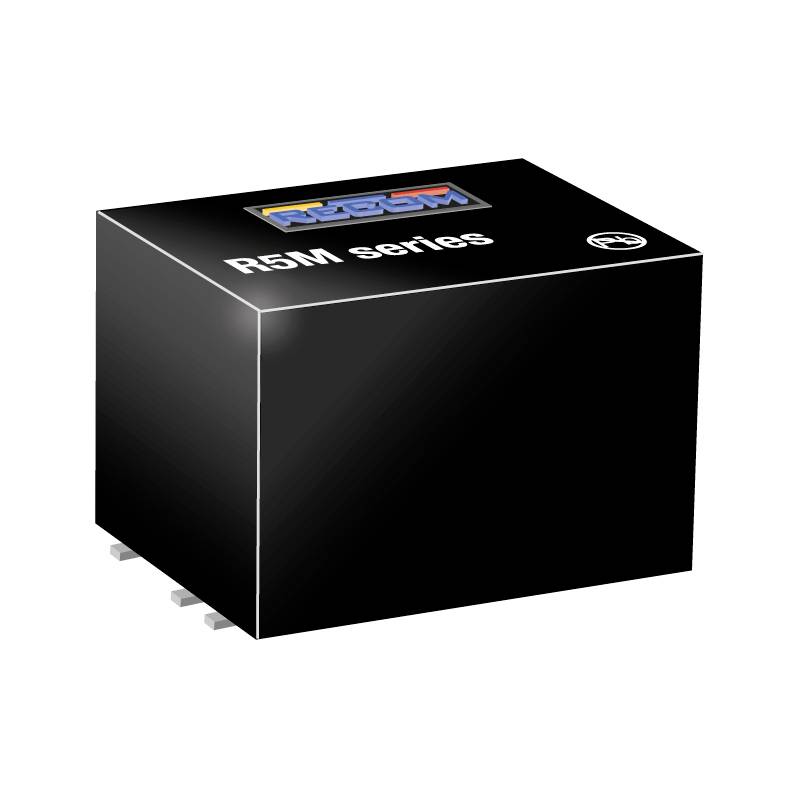

RECOM R5M-2405S/SMD DC/DC converter 24 V 5 V 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 2200 µF
- Remaining ripple 50 MVP-p
- Application: ITE, Industry
- SMD casing
- Input voltage ratio 4:1
- Product type
DC/DC converter
- Type
R5M-2405S/SMD
- Nominal voltage
24 V
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
84 %
5 W
- Insulation voltage
1.600 V
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+105 °C
- Dim
(L x W x H) 14.20 x 9.10 x 10.20 mm
- Height
10.20 mm
- Length
14.20 mm
- Width
9.10 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
