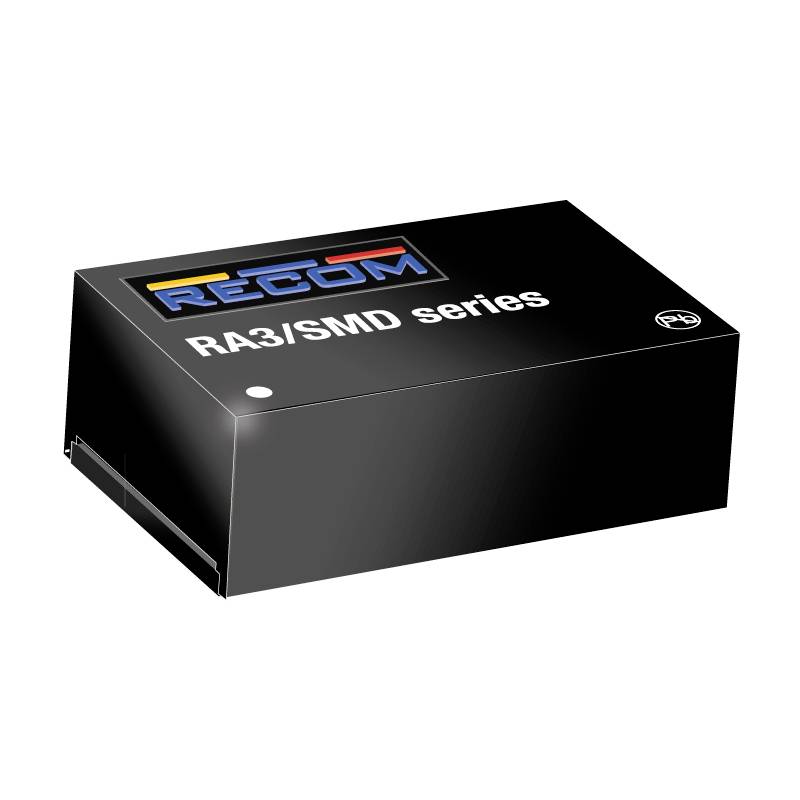

RECOM RA3-121503D/SMD DC/DC converter 12 V -3 V, 15 V -0.5 A 3 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 150 µF
- Remaining ripple 220 MVP-p
- Application: ITE, Industry
- Casing: DIP16
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
RA3-121503D/SMD
- Nominal voltage
12 V
- Min. input voltage
10.8 V DC
- Input voltage (max.)
13.2 V DC
- No. of outputs
2 x
- Output voltages
-3 V
15 V
- Max. output current
-0.5 A
- Efficiency (max.)
79 %
3 W
- Insulation voltage
5.200 V
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 23.40 x 15 x 8.50 mm
- Height
8.50 mm
- Length
23.40 mm
- Width
15 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
