RECOM RAC02E-24SK/277 SMPSU 24 V 0.083 A 2 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

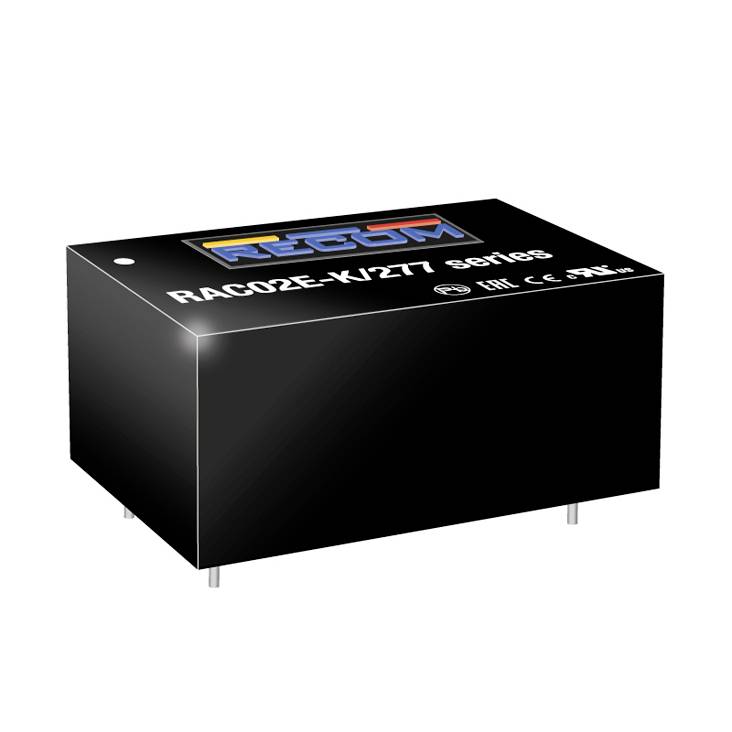

RECOM RAC02E-K/277 AC/DC SNT module
- Output 24 V / 0.083 A
- Power 2 W
- THT
Technical specifications
- Features LPS, DC compatible
- Efficiency 78 %
- No-load capacity less than 0,075 W.
- Remaining ripple 240 MVP-p
- Application: ITE, Industry
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 4,000 V
- Housing: Enclosed plastic
- Input current 0.4 A
- Switch-on current max. 20 A.
- Protection class: II
- Leakage current 0.25 mA
- Product type
SMPSU
- Input voltage (max.)
430 V DC
305 V AC
- Max. output current
0.083 A
- Output current (max.) - rounded
83 mA
- Min. input voltage
120 V DC
85 V AC
- Dim
(L x W x H) 33.70 x 22.20 x 15.40 mm
- Output voltage (max.)
24 V
- Connection
THT
2 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+80 °C
- Operating temperature (min.)
-40 °C
- Width
22.20 mm
- Height
15.40 mm
- Length
33.70 mm
- Type
RAC02E-24SK/277
- MTBF
1510000 h
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887446 RECOM RAC02E-24SK/277 SMPSU 24 V 0.083 A 2 W
User & Safety Instructions
User & Safety Instructions 2887446 RECOM RAC02E-24SK/277 SMPSU 24 V 0.083 A 2 W
Warranty Terms
Warranty Terms 2887446 RECOM RAC02E-24SK/277 SMPSU 24 V 0.083 A 2 W
Description
Hints
These power supplies are intended for installation in terminals.
