RECOM RAC03E-3.3SK/277 SMPSU 3.30 V 0.9 A 3 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

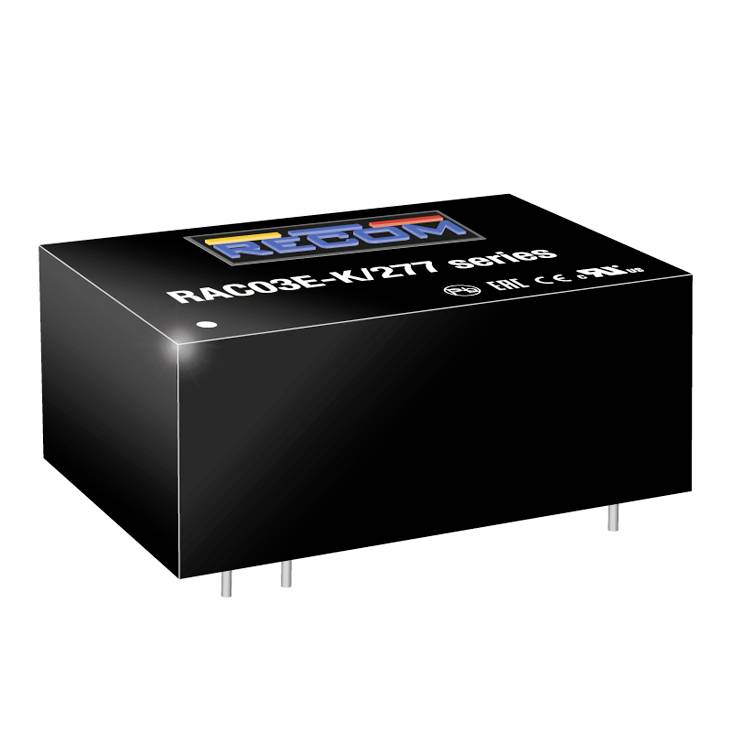

RECOM RAC03E-K/277 AC/DC SNT module
- Output 3.30 V / 0.9 A
- Power 3 W
- THT
Technical specifications
- Properties: DC compatible
- Efficiency 68 %
- No-load capacity less than 0,075 W.
- Remaining ripple 120 MVP-p
- Application: ITE, Industry, Household
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 3,000 V
- Housing: Enclosed plastic
- Input current 0.1 A
- Switch-on current max. 40 A.
- Protection class: II
- Protection class: IP20
- Product type
SMPSU
- Input voltage (max.)
430 V DC
305 V AC
- Max. output current
0.9 A
- Output current (max.) - rounded
900 mA
- Min. input voltage
120 V DC
85 V AC
- Dim
(L x W x H) 37 x 24 x 15.40 mm
- Output voltage (max.)
3.30 V
- Connection
THT
3 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- Width
24 mm
- Height
15.40 mm
- Length
37 mm
- Type
RAC03E-3.3SK/277
- MTBF
2040000 h
Documents & Downloads
Datasheet
Datasheet 2887452 RECOM RAC03E-3.3SK/277 SMPSU 3.30 V 0.9 A 3 W
User & Safety Instructions
User & Safety Instructions 2887452 RECOM RAC03E-3.3SK/277 SMPSU 3.30 V 0.9 A 3 W
Warranty Terms
Warranty Terms 2887452 RECOM RAC03E-3.3SK/277 SMPSU 3.30 V 0.9 A 3 W
Description
Hints
These power supplies are intended for installation in terminals.
