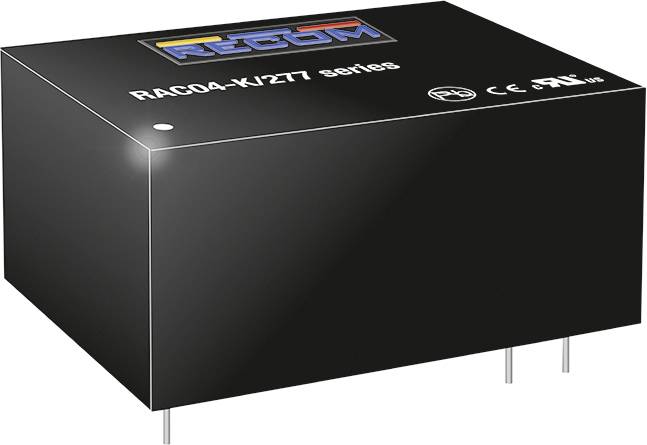

RECOM RAC04-3.3SK/277 SMPSU 3.30 V 1.2 A 4 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RECOM RAC04-C AC/DC SNT module
- Output 3.30 V / 1.2 A
- Power 4 W
- THT
Technical specifications
- Features: Peak power, DC compatible
- Efficiency 73 %
- No-load capacity less than 0.15 W.
- Remaining ripple 33 MVP-p
- Application: ITE, Industry
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 3,000 V
- Housing: Enclosed plastic
- Input current 0.1 A
- Switch-on current max. 40 A.
- Protection class: II
- Leakage current 0.25 mA
- Protection class: IP20
- Product type
SMPSU
- Input voltage (max.)
390 V DC
305 V AC
- Max. output current
1.2 A
- Output current (max.) - rounded
1.2 A
- Min. input voltage
110 V DC
80 V AC
- Dim
(L x W x H) 36.70 x 27.20 x 17.40 mm
- Output voltage (max.)
3.30 V
- Connection
THT
4 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+75 °C
- Operating temperature (min.)
-40 °C
- Width
27.20 mm
- Height
17.40 mm
- Length
36.70 mm
- Type
RAC04-3.3SK/277
- MTBF
1696000 h
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887454 RECOM RAC04-3.3SK/277 SMPSU 3.30 V 1.2 A 4 W
User & Safety Instructions
User & Safety Instructions 2887454 RECOM RAC04-3.3SK/277 SMPSU 3.30 V 1.2 A 4 W
Warranty Terms
Warranty Terms 2887454 RECOM RAC04-3.3SK/277 SMPSU 3.30 V 1.2 A 4 W
Description
Hints
These power supplies are intended for installation in terminals.
