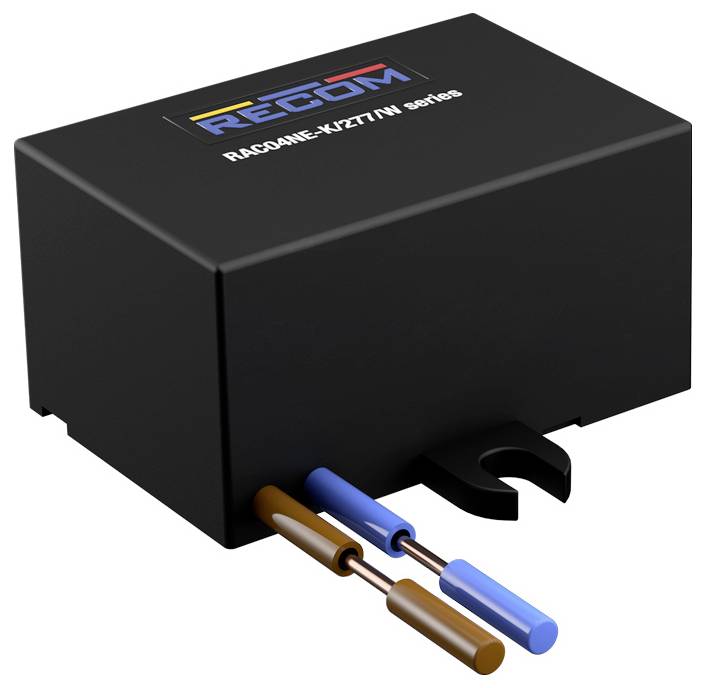

RECOM RAC04NE-12SK/277/W AC/DC converter 12 V 0.33 A 4 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brand.2514 RAC04NE-K/277 SNT case single outp
- Output 12 V / 0.33 A
- Power 4 W
- Braid
Technical specifications
- Operation maintenance 110000 h
- MTBF 2260000 h
- Network frequency: 50~60 Hz
- Product type
AC/DC converter
- Input voltage (max.)
305 V AC
- Max. output current
0.33 A
- Output current (max.) - rounded
330 mA
- Min. input voltage
85 V AC
- Dim
(L x W x H) 37.8 x 24 x 18 mm
- Output voltage (max.)
12 V
- Connection
Braid
4 W
IP65
Protection class II
- Operating temperature (max.)
-40 °C
- Operating temperature (min.)
+85 °C
- Width
24 mm
- Height
18 mm
- Length
37.8 mm
- Type
RAC04NE-12SK/277/W
Documents & Downloads
Datasheet
Datasheet 3435625 RECOM RAC04NE-12SK/277/W AC/DC converter 12 V 0.33 A 4 W
User & Safety Instructions
User & Safety Instructions 3435625 RECOM RAC04NE-12SK/277/W AC/DC converter 12 V 0.33 A 4 W
Description
RAC04NE-K are particularly robust AC/DC modules for a maximum power range of 4 to 6 watts and are specially designed for continuous operation under significantly extended operating conditions. The full output power of 100% stands from -40°C to 80°C and also for all worldwide
Single-phase alternating current networks or 100/115/200/230/277 VAC. The overvoltage category OVC III is kept up to an operating height of 3000 m, the overvoltage category OVC II up to 5000 m. The interference resistance is 2 kV (L-N) or 4 kV (L-PE) and is therefore much higher than is usual for modules of this size. An integrated emission filter offers the possibility of system integration according to EN55022 "B", also with load-side equipotential bonding of sensitive electronics or protection class PELV. In addition to the encapsulated print modules, a wired mechanical version is available with mounting brackets and IP65 water resistance, which is also approved according to IEC61347.
This text is machine translated.
Single-phase alternating current networks or 100/115/200/230/277 VAC. The overvoltage category OVC III is kept up to an operating height of 3000 m, the overvoltage category OVC II up to 5000 m. The interference resistance is 2 kV (L-N) or 4 kV (L-PE) and is therefore much higher than is usual for modules of this size. An integrated emission filter offers the possibility of system integration according to EN55022 "B", also with load-side equipotential bonding of sensitive electronics or protection class PELV. In addition to the encapsulated print modules, a wired mechanical version is available with mounting brackets and IP65 water resistance, which is also approved according to IEC61347.
