RECOM RAC05E-15SK SMPSU 15 V 0.333 A 5 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

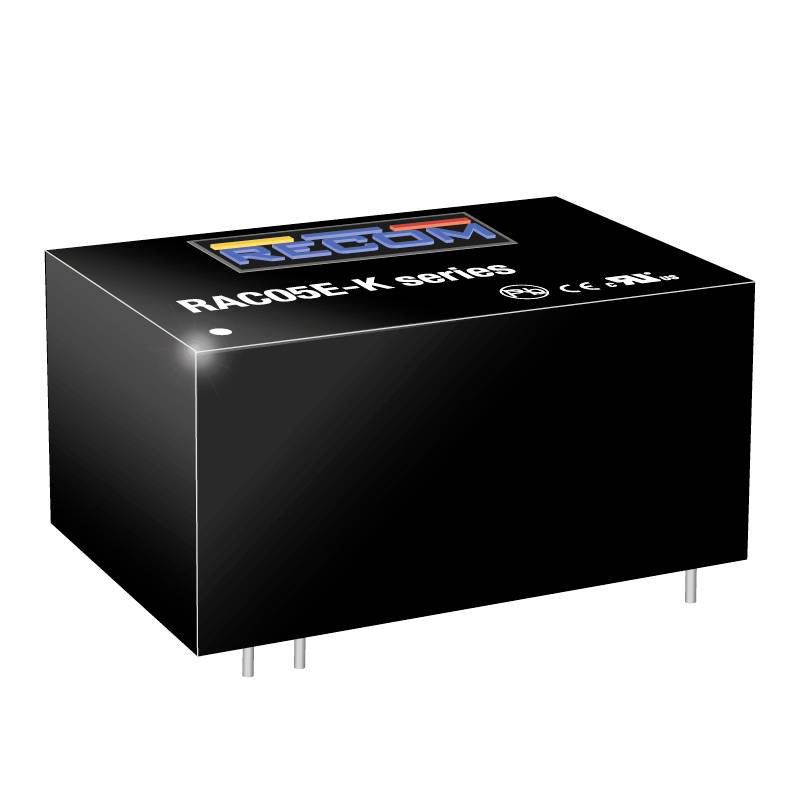

RECOM RAC05E-K case single output THT
- Output 15 V / 0.333 A
- Power 5 W
- THT
Technical specifications
- Properties: DC compatible
- Efficiency 79 %
- No-load capacity less than 0.01 W.
- Remaining ripple 150 MVP-p
- Application: ITE, Industry, Household
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 3,000 V
- Housing: Enclosed plastic
- Input current 0.1 A
- Switch-on current max. 40 A.
- Protection class: II
- Protection class: IP20
- Product type
SMPSU
- Input voltage (max.)
370 V DC
264 V AC
- Max. output current
0.333 A
- Output current (max.) - rounded
333 mA
- Min. input voltage
130 V DC
90 V AC
- Dim
(L x W x H) 37 x 24 x 18 mm
- Output voltage (max.)
15 V
- Connection
THT
5 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+75 °C
- Operating temperature (min.)
-25 °C
- Width
24 mm
- Height
18 mm
- Length
37 mm
- Type
RAC05E-15SK
- MTBF
1680000 h
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887458 RECOM RAC05E-15SK SMPSU 15 V 0.333 A 5 W
User & Safety Instructions
User & Safety Instructions 2887458 RECOM RAC05E-15SK SMPSU 15 V 0.333 A 5 W
Warranty Terms
Warranty Terms 2887458 RECOM RAC05E-15SK SMPSU 15 V 0.333 A 5 W
Description
Hints
These power supplies are intended for installation in terminals.
