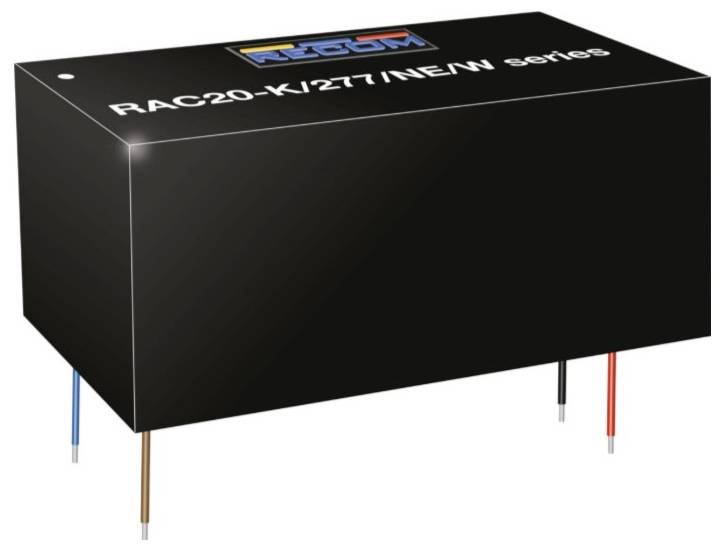

RECOM RAC20-24SK/277/NE/W AC/DC converter 24 V 0.830 A 20 W
EAN:
Part number:
Item no:
Highlights & Details
Brand.2514 RAC20-K/277/NE/W SNT case single O
- Output 24 V / 0.830 A
- Power 20 W
- Braid
Technical specifications
- Operation maintenance 130000 h
- MTBF 11960000 h
- Network frequency: 50~60 Hz
- Product type
AC/DC converter
- Input voltage (max.)
264 V AC
- Max. output current
0.830 A
- Output current (max.) - rounded
830 mA
- Min. input voltage
85 V AC
- Dim
(L x W x H) 52.5 x 27.4 x 23 mm
- Output voltage (max.)
24 V
- Connection
Braid
20 W
IP20
Protection class II
- Operating temperature (max.)
-40 °C
- Operating temperature (min.)
+85 °C
- Width
27.4 mm
- Height
23 mm
- Length
52.5 mm
- Type
RAC20-24SK/277/NE/W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435630 RECOM RAC20-24SK/277/NE/W AC/DC converter 24 V 0.830 A 20 W
Description
The RAC20-K series is a highly efficient PCB-mounted power transformer module with extremely low energy losses, especially at low load, WAS makes it a benchmark for always-on and standby operation, typically associated with IoT and Smart applications. The power supply units cover a worldwide mains entry range from 85VAC to 305VAC and have international safety certifications for industrial, AV, ITE and household standards. These AC/DC modules operate in a temperature range from -40°C to +85°C with operating altitude of up to 5000m and offer fully protected single or dual outputs as well as EMC Class B compliance without the need for external components in ground-free connections. Modified versions for OVC III requirements are available on request.
