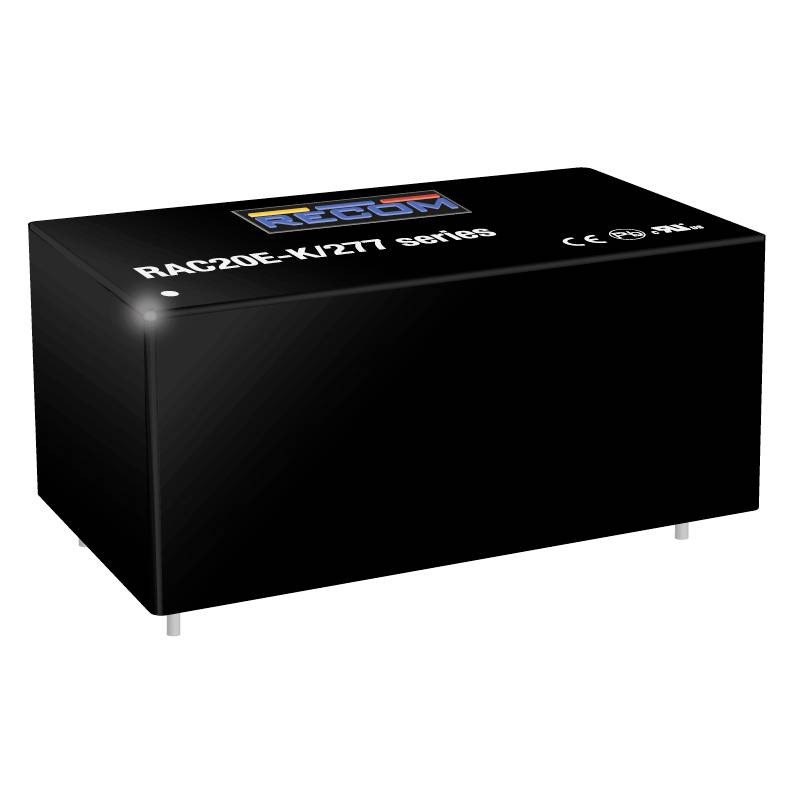

RECOM RAC20E-05SK/277 SMPSU 5 V 4 A 20 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RECOM RAC20E-K/277 SNT case single output
- Output 5 V / 4 A
- Power 20 W
- THT
Technical specifications
- Properties: DC compatible
- Efficiency 80 %
- No-load capacity less than 0.2 W.
- Remaining ripple 150 MVP-p
- Application: ITE, Industry
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 4,000 V
- Housing: Enclosed plastic
- Input current 0.3 A
- Switch-on current max. 40 A.
- Protection class: II
- Leakage current 0.25 mA
- Surge voltage category 3
- Product type
SMPSU
- Input voltage (max.)
430 V DC
305 V AC
- Max. output current
4 A
- Output current (max.) - rounded
4 A
- Min. input voltage
120 V DC
85 V AC
- Dim
(L x W x H) 52.70 x 27.60 x 23 mm
- Output voltage (max.)
5 V
- Connection
THT
20 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+90 °C
- Operating temperature (min.)
-40 °C
- Width
27.60 mm
- Height
23 mm
- Length
52.70 mm
- Type
RAC20E-05SK/277
- MTBF
700000 h
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887480 RECOM RAC20E-05SK/277 SMPSU 5 V 4 A 20 W
User & Safety Instructions
User & Safety Instructions 2887480 RECOM RAC20E-05SK/277 SMPSU 5 V 4 A 20 W
Warranty Terms
Warranty Terms 2887480 RECOM RAC20E-05SK/277 SMPSU 5 V 4 A 20 W
Description
Hints
These power supplies are intended for installation in terminals.
