RECOM RAC25-24SK/480 SMPSU 24 V 1.04 A 25 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

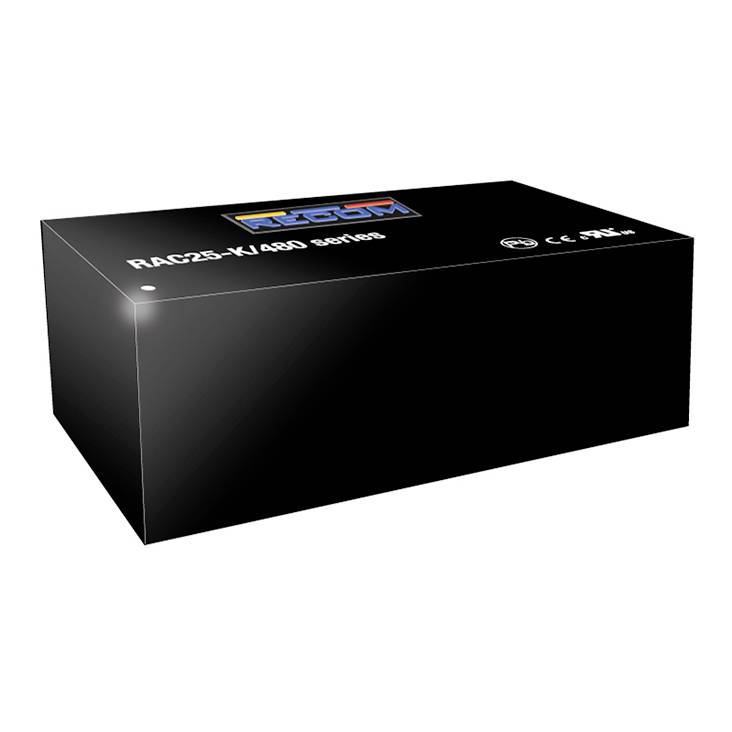

RECOM RAC25-K/480 SNT case single output
- Output 24 V / 1.04 A
- Power 25 W
- THT
Technical specifications
- Features LPS, DC compatible
- Efficiency 87 %
- No-load capacity less than 0.3 W.
- Remaining ripple 240 MVP-p
- Application: ITE, Industry
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 3,600 V
- Housing: Enclosed plastic
- Input current 0.5 A
- Switch-on current max. 40 A.
- Protection class: II
- Leakage current 0.25 mA
- Surge voltage category 3
- Product type
SMPSU
- Input voltage (max.)
750 V DC
528 V AC
- Max. output current
1.04 A
- Output current (max.) - rounded
1.04 A
- Min. input voltage
120 V DC
85 V AC
- Dim
(L x W x H) 83.23 x 46.43 x 30.40 mm
- Output voltage (max.)
24 V
- Connection
THT
25 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+90 °C
- Operating temperature (min.)
-40 °C
- Width
46.43 mm
- Height
30.40 mm
- Length
83.23 mm
- Type
RAC25-24SK/480
- MTBF
1040000 h
- UKCA
yes
