RECOM RACM1200-48SAV/PMB SMPSU 48 V 25 A 1.200 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

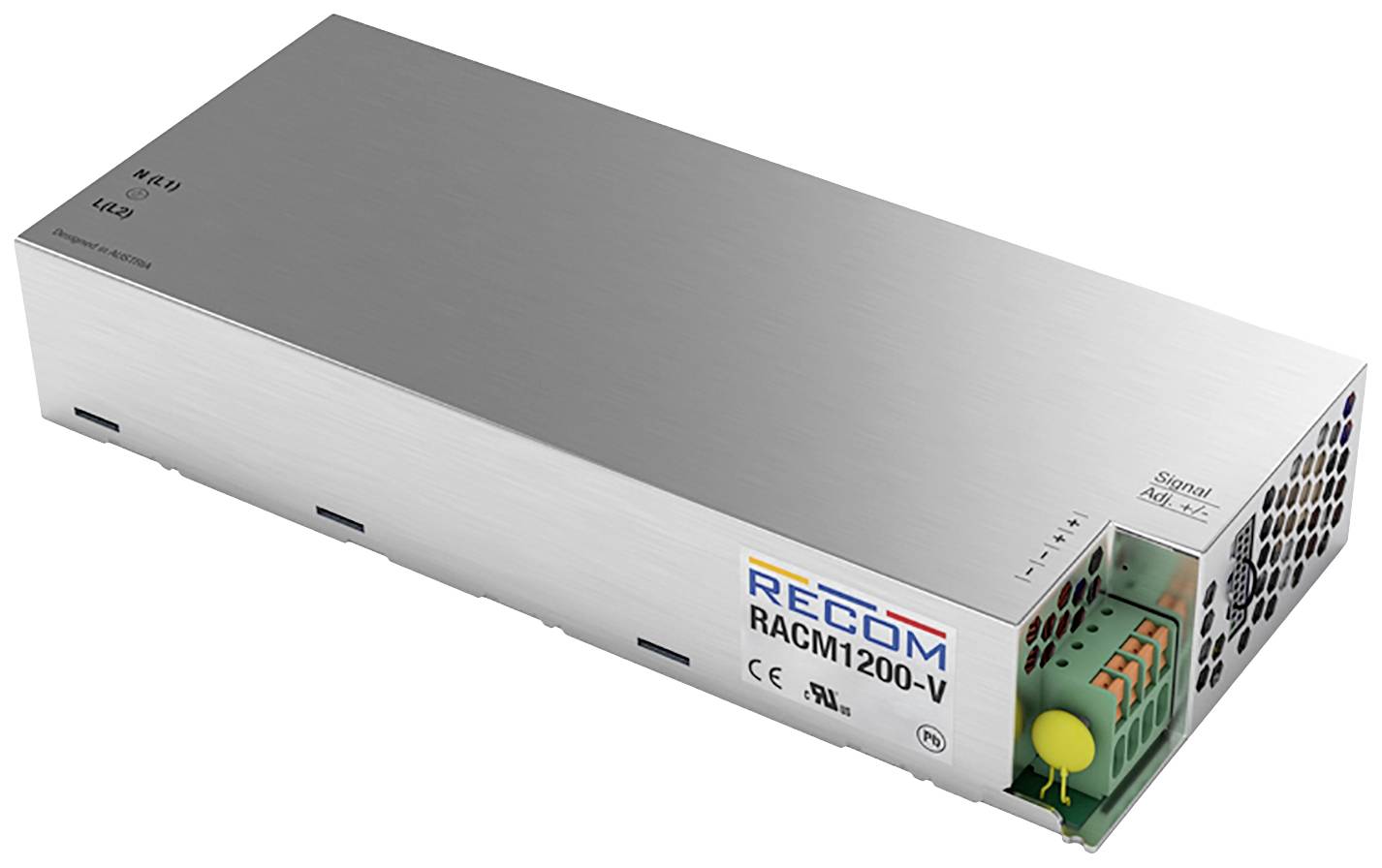

RECOM RACM1200-V AC/DC 9x3.8 in 1200W
- Output 48 V / 25 A
- Power 1.200 W
- Connector
Technical specifications
- Features: Peak power, output voltage adjustable, fan-free, remote function, remote sense, AUX power supply, DC-OK signal, AC-OK signal, fan connection
- Efficiency 95 %
- No-load capacity less than 2 W.
- Remaining ripple 480 MVP-p
- Application: ITE, industry, medicine, household
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 4,000 V
- Housing: Open frame
- Input current 14 A
- Switch-on current max. 30 A.
- Protection class: II
- Leakage current 0.3 mA
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
25 A
- Output current (max.) - rounded
25 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 228 x 96.20 x 40 mm
- Output voltage (max.)
48 V
- Connection
Connector
1.200 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+85 °C
- Operating temperature (min.)
-40 °C
- Width
96.20 mm
- Height
40 mm
- Length
228 mm
- Type
RACM1200-48SAV/PMB
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887543 RECOM RACM1200-48SAV/PMB SMPSU 48 V 25 A 1.200 W
User & Safety Instructions
User & Safety Instructions 2887543 RECOM RACM1200-48SAV/PMB SMPSU 48 V 25 A 1.200 W
Warranty Terms
Warranty Terms 2887543 RECOM RACM1200-48SAV/PMB SMPSU 48 V 25 A 1.200 W
Description
Hints
These power supplies are intended for installation in terminals.
