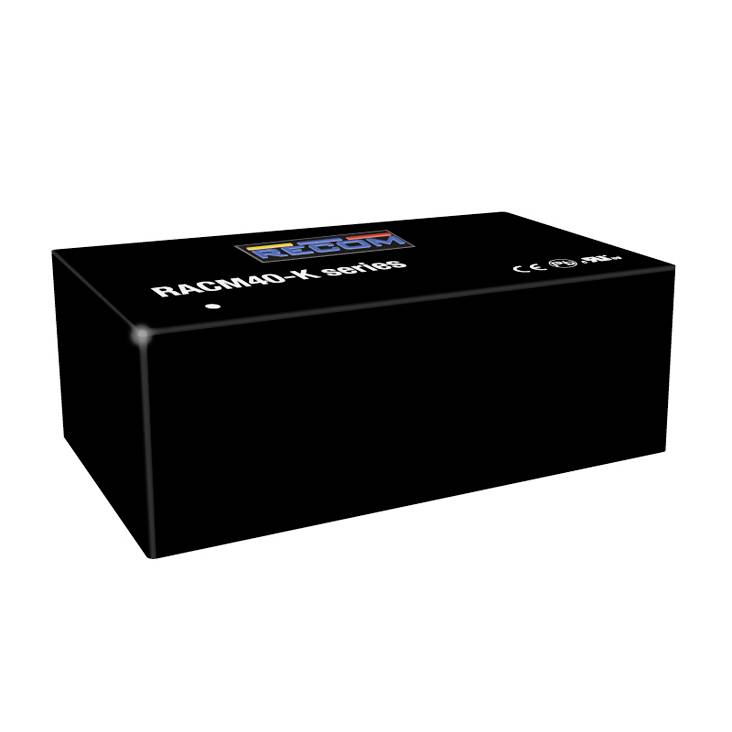

RECOM RACM40-15SK-T SMPSU 15 V 2.667 A 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RECOM RACM40-K single output 40W medical
- Output 15 V / 2.667 A
- Power 40 W
- THT
Technical specifications
- Properties: DC compatible
- Efficiency 90 %
- No-load capacity less than 0.5 W.
- Remaining ripple 150 MVP-p
- Application: ITE, Industry, Household
- , Medical overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 4,000 V
- Housing: Enclosed plastic
- Input current 0.5 A
- Switch-on current max. 30 A.
- Protection class: II
- Leakage current 1.5 mA
- Surge voltage category 3
- Product type
SMPSU
- Input voltage (max.)
370 V DC
264 V AC
- Max. output current
2.667 A
- Output current (max.) - rounded
2.67 A
- Min. input voltage
120 V DC
80 V AC
- Dim
(L x W x H) 83.23 x 46.43 x 30.40 mm
- Output voltage (max.)
15 V
- Connection
THT
40 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+65 °C
- Operating temperature (min.)
-40 °C
- Width
46.43 mm
- Height
30.40 mm
- Length
83.23 mm
- Type
RACM40-15SK-T
- MTBF
1006000 h
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887504 RECOM RACM40-15SK-T SMPSU 15 V 2.667 A 40 W
User & Safety Instructions
User & Safety Instructions 2887504 RECOM RACM40-15SK-T SMPSU 15 V 2.667 A 40 W
Warranty Terms
Warranty Terms 2887504 RECOM RACM40-15SK-T SMPSU 15 V 2.667 A 40 W
Description
Hints
These power supplies are intended for installation in terminals.
