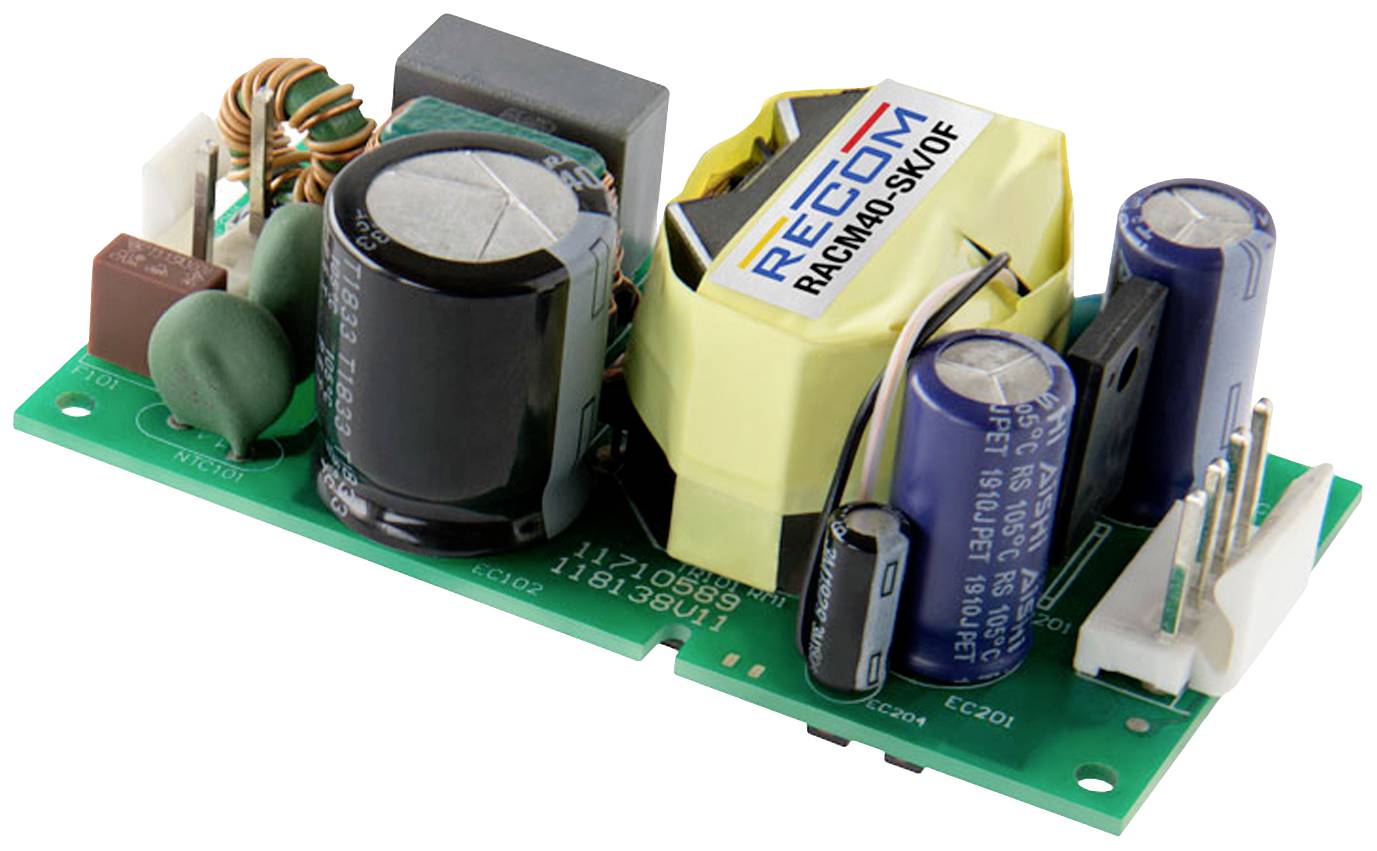

RECOM RACM40-36SK/OF AC/DC PSU module (open frame) 36 V 1.111 A 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
Only 10 Piece(s) available
Highlights & Details
RECOM RACM40-K single output 40W medical
- Output 36 V / 1.111 A
- Power 40 W
- Connector
Technical specifications
- Properties: DC compatible
- Efficiency 90 %
- No-load capacity less than 0.1 W.
- Remaining ripple 360 MVP-p
- Application: ITE, industry, medicine, household
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 4,000 V
- Housing: Enclosed plastic
- Input current 0.5 A
- Switch-on current max. 30 A.
- Protection class: II
- Surge voltage category 3
- Product type
AC/DC PSU module (open frame)
- Input voltage (max.)
370 V DC
264 V AC
- Max. output current
1.111 A
- Output current (max.) - rounded
1.11 A
- Min. input voltage
120 V DC
80 V AC
- Dim
(L x W x H) 78.30 x 40.60 x 25.50 mm
- Output voltage (max.)
36 V
- Connection
Connector
40 W
- No. of outputs
1 x
- Type
open
- Operating temperature (max.)
+60 °C
- Operating temperature (min.)
-40 °C
- Width
40.60 mm
- Height
25.50 mm
- Length
78.30 mm
- Type
RACM40-36SK/OF
- MTBF
1006000 h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2887512 RECOM RACM40-36SK/OF AC/DC PSU module (open frame) 36 V 1.111 A 40 W
User & Safety Instructions
User & Safety Instructions 2887512 RECOM RACM40-36SK/OF AC/DC PSU module (open frame) 36 V 1.111 A 40 W
Warranty Terms
Warranty Terms 2887512 RECOM RACM40-36SK/OF AC/DC PSU module (open frame) 36 V 1.111 A 40 W
Description
Hints
These power supplies are intended for installation in terminals.
